Blustream IP Multicast UHD Receiver

1GB 4K HDR 4:4:4 HDCP2.2 IR, USB/KVM PoE

Varenr: IP200UHD-RX
8 283,-eks mva.
BeskrivelseTeknisk infoTilbehørAlternativerSupport
Beskrivelse
IP200UHD-RX
IP Multicast UHD Video Receiver over 1GB Network, Built-in Video Scaler, Video-wall Mode, Bi-directional IR, RS-232 & USB / KVM, PoE, Analogue Audio Breakout and HDCP 2.2


Description

Our UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1Gb Network switch.

The IP200UHD-RX is an industry leading 4K HDCP 2.2 HDMI video scaling receiver that using visually lossless compression technology delivers HDMI, Bi-directional IR, RS-232 & USB / KVM up to lengths of 100m over standard network architecture.


The IP200UHD-RX can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast solution is ideal for both commercial and residential installations.


Box Contents
1 x IP200UHD-RX
1 x (IRR) IR Receiver
1 x (IR1) IR Transmitter
1 x Serial 3-pin Phoenix Connector
1 x Mounting Kit


Key Features

Advanced UHD video over 1GB Network
Virtually unlimited system size
Extends HDMI up to a distance of 100m over a single CAT cable
Video up-scaling and down-scaling
Supports up to 4K 30Hz UHD video output
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
PoE (Power over Ethernet) to power Blustream products from PoE switch
HDCP 2.2 compliant with advanced EDID management
Analogue L/R audio breakout
LAN loop-out for one-to-many extender mode
Local 24-56V power supply (should Ethernet switch not support PoE) - sold separately


Features 4 operational modes:

     - Matrix distribution (requires 1Gb network switch)
     - Video wall (requires 1Gb network switch)
     - One-to-one HDMI extender (No network switch required)
     - One-to-many HDMI extender (No network switch required)


Product Video - Software Quick Start Guide

Teknisk info

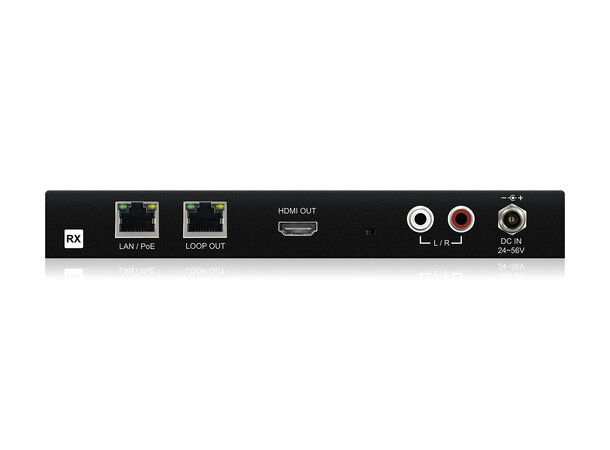

Video Input Connectors: 1 x LAN RJ45 connector,
Video Output Connectors: 1 x HDMI Type A, female
Audio Output Connectors: 2 x RCA L/R Analogue audio
Ethernet port: 1 x LAN RJ45 connector (video extension)

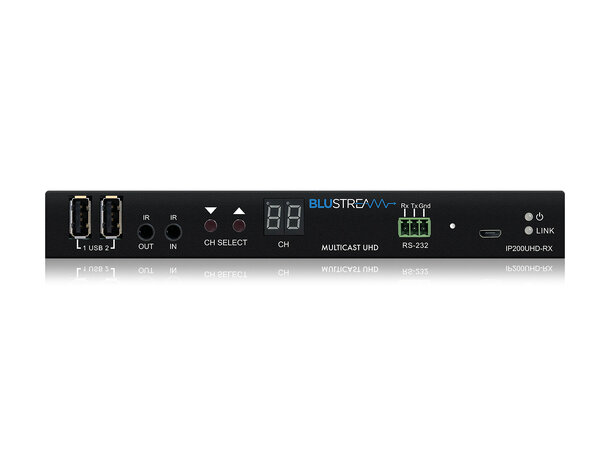

RS-232 Serial port: 1 x 3-Pin Phoenix connector
USB/KVM Port: 2 x USB - Type A
IR Input ports: 1 x 3.5mm stereo jack
IR Output ports: 1 x 3.5mm mono jack
Firmware Update (MCU): 1x Micro-USB
Mounting kit included
Dimensions (W x D x H ): 190mm x 114mm x 25mm
Shipping Weight: 0.8kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
