Highlights
- Ceiling suspension
- Innovative & unique design
- Suspension cable with dual steel core
- Ceiling cable cover
- Rotary switch for 15W, 30W, 60W and 16 Ohm tappings
Applications
- Bars, restaurants
- Retail
- Education
- Public facilities
- Corporate spaces
- Sport facilities
"Pure sound, hanging around."

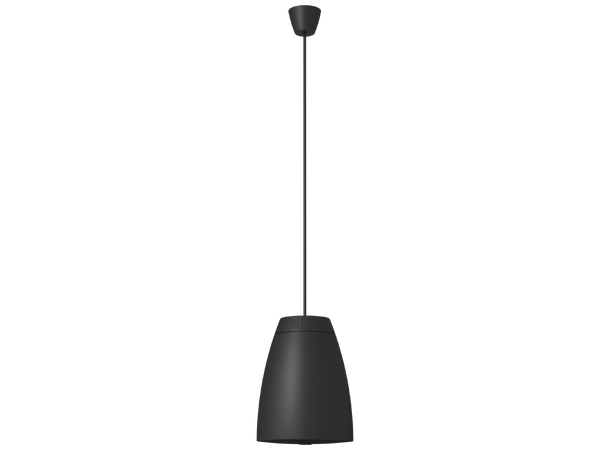

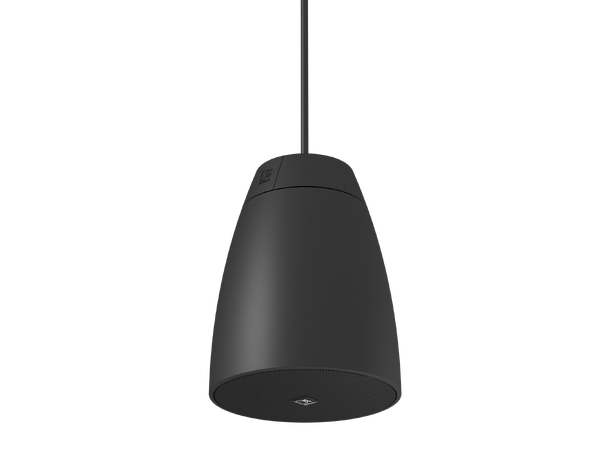

The ALTI6 is a 2-way pendant loudspeaker featuring a 6.5” driver combination with a coaxially mounted 1” soft dome tweeter and is fitted with a phase plug for excellent off-axis performance.

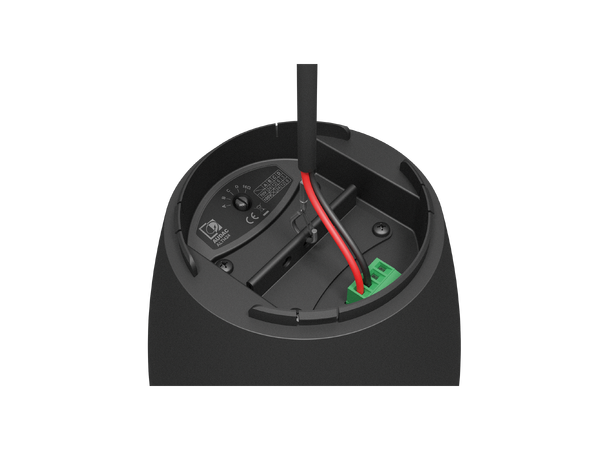

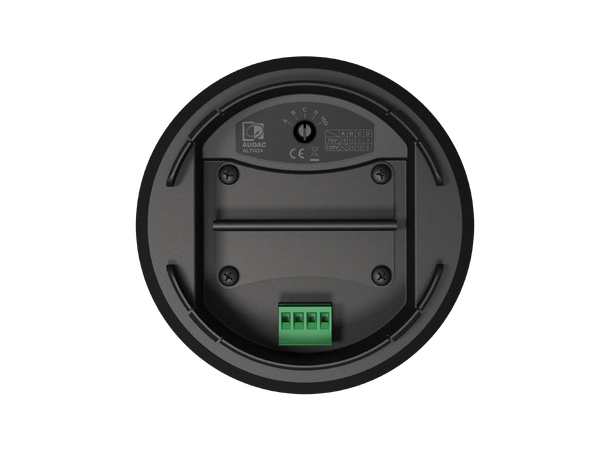

The 2-way combination with a high-quality polypropylene enclosure and acoustic engineering craftsmanship guarantees premium performance for demanding applications. A continuous power handling of 60 Watt (RMS) and maximum power handling of 120 Watt is achieved. Connections are made through a terminal block connector behind the rear cover, accompanied with a power tap selector switch for the tapping of a 70V/100V line transformer with tappings for 60W, 30W, 15W and a 16 Ohm bypass connection.
| System specifications |
|---|
| Speaker type | 2-way coaxial |
| Max. Power | 120 W |
| RMS Power | 60 W |
| Impedance | 16 ? |
| Line Transformer Tappings | 1 | 83 ? - 100 V / Not used - 70 V / 60 W |
| 2 | 167 ? - 100 V / 60 W - 70 V / 30 W |
| 3 | 333 ? - 100 V / 30 W - 70 V / 15 W |
| 4 | 667 ? - 100 V / 15 W - 70 V / 7.5 W |

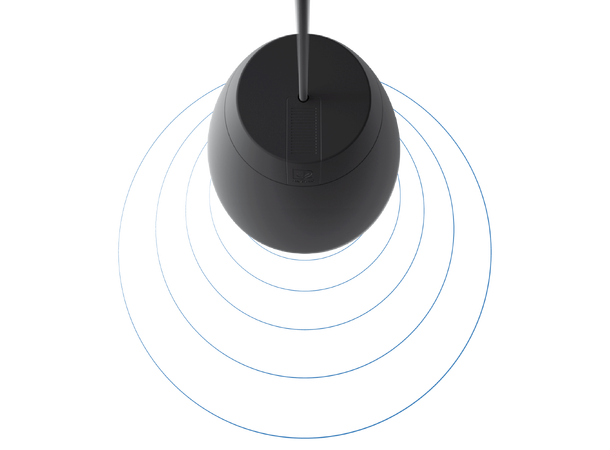

| Dispersion | Conical | 115° (average 500 Hz to 5 kHz @ -6 dB) |
| Connectors | 4-pin Euro Terminal Block |
| Product Features |
|---|
| Dimensions | 230 x 302 mm (Ø x H) |
| Connection cable length | 3.5 m |
| Construction | ABS |
| Front finish | Steel grill |
| Mounting & handling | Dual snap hook and dual Gripple™ hanger |
| Accessories | Included | Connection cable with dual copper and dual steel cores |
| | 2 Gripple™ hangers |
