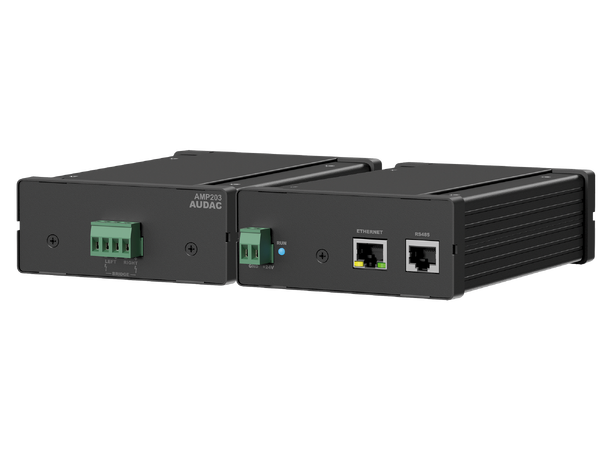

Audac AMP203 2x30w forsterker

Dante, PoE, Audac Touch2, DSP, RS-485,

Varenr: AMP203
5 995,-eks mva.
BeskrivelseTilbehørSupport
Beskrivelse

Highlights

  • Compatible with AUDAC Touch™ 2
  • Compatible with TouchLink™
  • Advanced DSP and loudspeaker management
  • Dante & AES67 digital audio input
  • PoE 802.3bt (and lower) compatible
  • Ethernet & RS-485 control possibilities

Applications

  • Education
  • Corporate spaces
  • Retail
  • Residential

The AMP203 is a revolutionary small amplifier, featuring network input through Dante or AES67 providing a complete media networking solution to distribute uncompressed audio via standard Ethernet networks with near-zero latency, while allowing all other data to be connected on the same network.

The output connector has been implemented using a 4-pin terminal block connector, featuring an output power of 30W per channel and 60W when bridged.

Using PoE (Power over Ethernet) this extremely power-efficient amplifier receives both power and signal through a single networking cable, this way flexibility is maximized while needed cabling is kept at a minimum.

The compact convection cooled enclosure eliminates any humm or buzz otherwise caused by a fan. Various optional mounting brackets are available like the MBS1xx series, which allow it to be mounted under a desk, in a closet, on the wall, on top of a dropped ceiling or to a 19" equipment rack. This proves that the AMP203 is the perfect solution for compact to medium-sized applications in corporate, hospitality or retail environments.

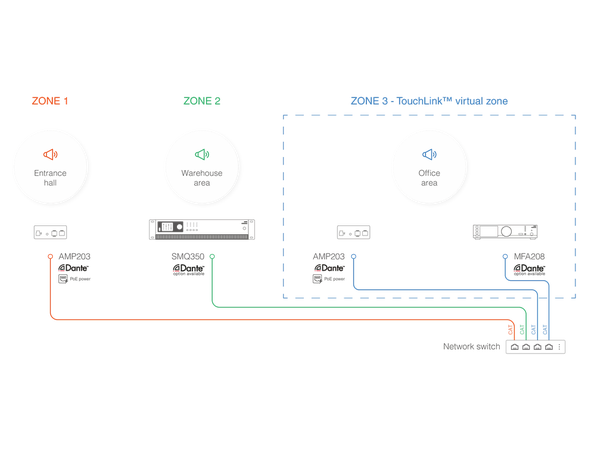

Decentralize your system

Thanks to the multifunctional use of the AMP203 in combination with the AUDAC Touch™ 2 app it is possible to create a decentralized multi-zone system. By simply connecting the AMP203 to the local network and connecting the loudspeakers, a new zone can be introduced to your system.

DSP functionalities coming soon in AUDAC Touch™ 2

By the end of Q2 2020, various DSP functionalities will be implemented. This will allow all configurations to be made in AUDAC Touch™ or via RS485 and Ethernet, making the AMP203 a fully-fletched 2 x 30W amplifier.





System specifications
RMS Power@ 2 ? Bridge1 x 60 W
THD+N (@ 1 kHz)< 0.015%
Crosstalk (@ 1 kHz)< -98 dB
Efficiency> 70%
CoolingConvection cooled
ControlRS-485
TCP/IP
PowerPoE 802.3bt
Supply24 V DC
InputsOtherType1 x Ethernet
RS-485
Dante/AES67 (4 channels)
ConnectorRJ45
ProtectionOver heating
Over load
DC Short circuit
Signal limiting
OutputsType1 x Stereo Loudspeaker
Connector4-pin Euro Terminal Block (Pitch - 5.08 mm)
PowerConsumption80 W (max.)
Nominal (1/8 MUP)10.6 W
RMS Power@ 4 ? Stereo2 x 30 W
@ 8 ? Bridge1 x 30 W
@ 8 ? Stereo2 x 30 W
@ 4 ? Bridge1 x 60 W
Product Features
Dimensions108 x 44 x 165 mm (W x H x D)
Weight

0.7 kg
