Prime Kabeltrommel HDMI HighFlex 100m 100m HDMI han/han på kabeltrommel Prime Kabeltrommel HDMI HighFlex 100m 100m HDMI han/han på kabeltrommel Prime Kabeltrommel HDMI HighFlex 100m 100m HDMI han/han på kabeltrommel

Prime Kabeltrommel HDMI HighFlex 100m

100m HDMI han/han på kabeltrommel

Varenr: PRX220A/100
9 595,-eks mva.
BeskrivelseTeknisk infoAlternativerDokumenter
Beskrivelse

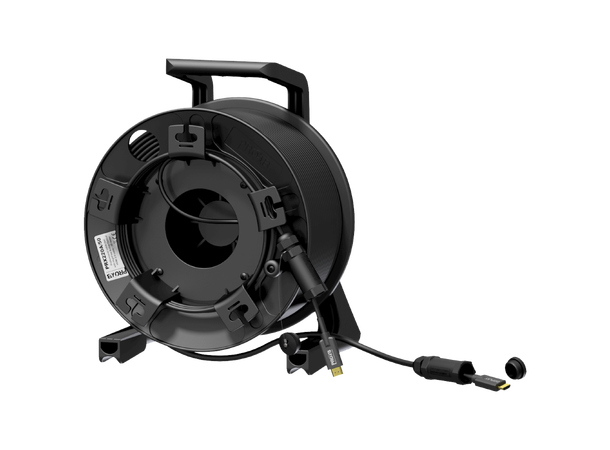

The PRX220A series consists of armored optical HDMI 2.0 cables which are able to transmit resolutions up to 4K@60Hz 4:4:4 with a bandwidth of 18Gbps via optical fiber, eliminating the possibility of electronic interference. They are assembled on a light weight, extremely strong and impact resistant reel. The cable is provided with a stainless steel and Kevlar armor to protect the fibers. Combined with the heavy duty connectors with robust covers, this cable is perfectly suited for the harshest use and abuse that any rental and road applications can throw at it.

Highlights
HDMI 2.0
Ultra HD 4K 2160p
Fiber optic technology
Stainless steel and Kevlar armor
HDMI ARC up to 50 meter



Teknisk info

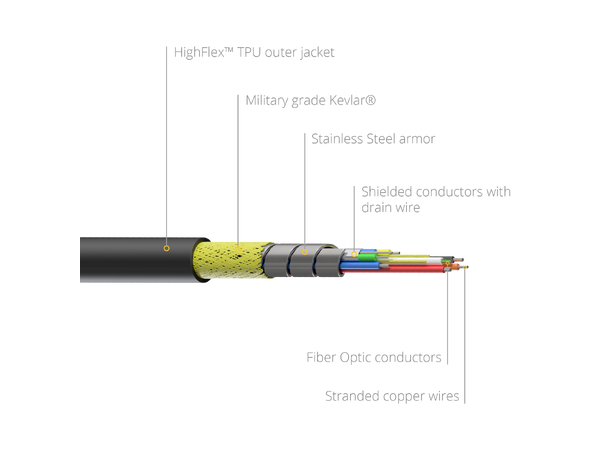

PHYSICAL CHARACTERISTICS
ArmorMaterialKevlar
Stainless steel
Strength testCrush test200 kg (Short term)
100 kg (Long term)
Bending radius10 D (Dynamic) / 20 D (Static)
Tensile strength test40 kg (Long term)
80 kg (Short term)
Connector bending test> 10000 cycles
Connector pull out force2 kg
Inner conductorMaterialTC 11 x 0.08 mm (Ø) (OFC)
TC 19 x 0.08 mm (Ø) (OFC)
TC 30 x 0.08 mm (Ø) (OFC)
TC 41 x 0.08 mm (Ø) (OFC)
50/125 OM3 / Fiber
Section0.05 mm²
0.08 mm²
0.14 mm²
0.25 mm²
Number of conductors12
InsulationMaterialPE 0.9 mm (Ø)
PE 1 mm (Ø)
Conductor twistingYes
ShieldingAluminium foilAl-mylar, 100% coverage - 25% Overlap
Drain wireTC 11 x 0.08 mm (Ø) (OFC)
Overall shieldingAluminium foilAl-mylar, 100% coverage - 25% Overlap
Outer jacketMaterialTPU 5.8 mm (Ø)
ColoursBlack
