Prime Kabeltrommel HDMI HighFlex 50m 50m HDMI han/han på kabeltrommel

Prime Kabeltrommel HDMI HighFlex 50m

50m HDMI han/han på kabeltrommel

Varenr: PRX220A/50

6 556,-eks mva.

Beskrivelse

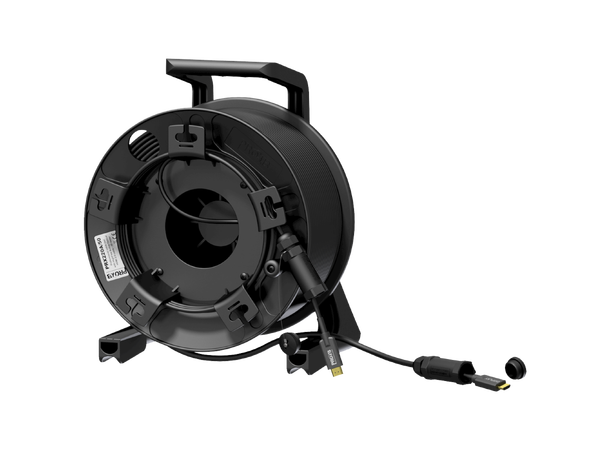

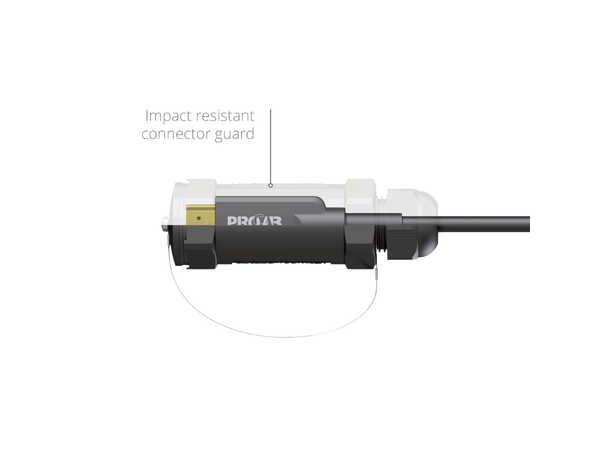

The PRX220A series consists of armored optical HDMI 2.0 cables which are able to transmit resolutions up to 4K@60Hz 4:4:4 with a bandwidth of 18Gbps via optical fiber, eliminating the possibility of electronic interference. They are assembled on a light weight, extremely strong and impact resistant reel. The cable is provided with a stainless steel and Kevlar armor to protect the fibers. Combined with the heavy duty connectors with robust covers, this cable is perfectly suited for the harshest use and abuse that any rental and road applications can throw at it.

Highlights
HDMI 2.0
Ultra HD 4K 2160p
Fiber optic technology

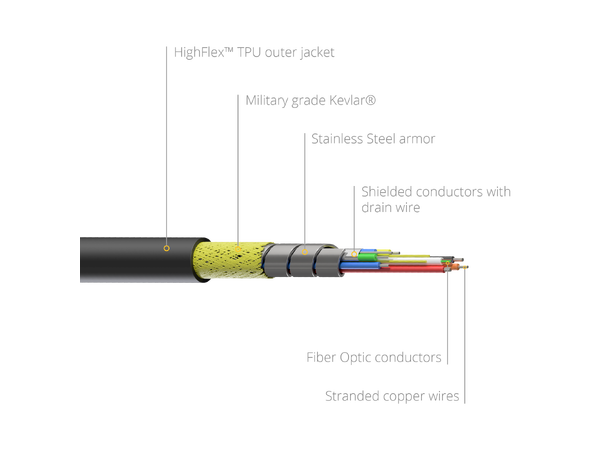

Stainless steel and Kevlar armor
HDMI ARC up to 50 meter

Teknisk info

PHYSICAL CHARACTERISTICS
Armor	Material		Kevlar
			Stainless steel
Strength test	Crush test		200 kg (Short term)
			100 kg (Long term)
	Bending radius		10 D (Dynamic) / 20 D (Static)
	Tensile strength test		40 kg (Long term)
			80 kg (Short term)
	Connector bending test		> 10000 cycles
	Connector pull out force		2 kg
Inner conductor	Material		TC 11 x 0.08 mm (Ø) (OFC)
			TC 19 x 0.08 mm (Ø) (OFC)
			TC 30 x 0.08 mm (Ø) (OFC)
			TC 41 x 0.08 mm (Ø) (OFC)
			50/125 OM3 / Fiber
	Section		0.05 mm²
			0.08 mm²
			0.14 mm²
			0.25 mm²
	Number of conductors		12
	Insulation	Material	PE 0.9 mm (Ø)
			PE 1 mm (Ø)
	Conductor twisting		Yes
	Shielding	Aluminium foil	Al-mylar, 100% coverage - 25% Overlap
		Drain wire	TC 11 x 0.08 mm (Ø) (OFC)
Overall shielding	Aluminium foil		Al-mylar, 100% coverage - 25% Overlap
Outer jacket	Material		TPU 5.8 mm (Ø)
	Colours		Black
