GS12A er en aktiv subwoofer med hele 4x750w forsterker. Dette gjør at den kan drive inntil 3 stk GS12 passive subber med søyler, eller 3 passive subber med 8 stk GH4 topper.
GENERAL
Power Handling: 600W subwoofer + 500W satellite Impedance: 4O subwoofer + 16O each segment Frequency Range: 37Hz – 20KHz (-6dB average) Maximum SPL(1): 122dB peakCoverage: V.20° - H.140°TRANSDUCERS
Subwoofer: 12” ferrite magnet Mid High Frequency: 2 modules with 8x2” neodymium magnet
AUDIO I/O

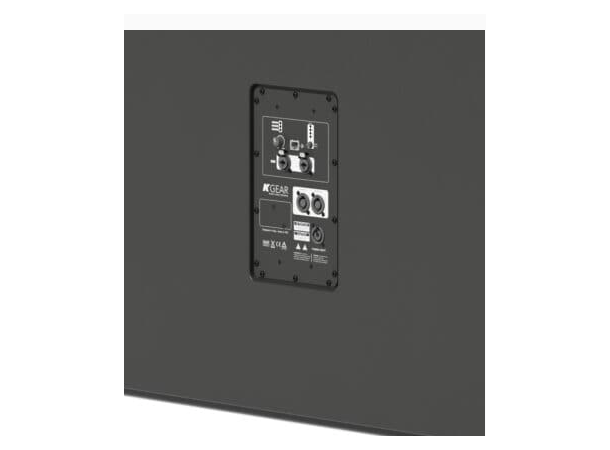

Analog balanced I: 2 x Combo jack-XLR female line Analog power O: 1 x Speakon to drive a GP12 Passive System in a stereo configuration
AUDIO CONTROLS
Volume potentiometer | RJ45 connector | DSP can be remotely controlled via an Ethernet connection through Powersoft ArmoniaPlus Software
AMPLIFIER
Type: 4-channel Class-D audio amplifier Power: 4x 750W @4ohm AC input: 100-240V AC @50-60Hz (Powercon connector)Max power consumption: 500W Rated Load (1/8 Max Power) Protections: Thermal Protections (Power limiting - Thermal Shutdown), Short-circuit/overload output protections, stationary high frequency protection, peak limiter, RMS limiter, frequency dependent RMS limiter, Clip limiter.
PHYSICAL OVERVIEW

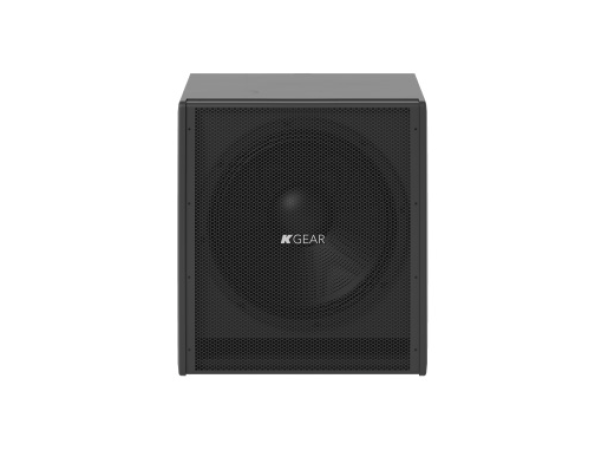

SUBWOOFER
Width: 405mm (15.94in) Height: 445mm (17.51in) Depth: 430mm (16.92in) Weight: 20kg (44.1lbs) Material: plywood Rating: IP41
