General Description

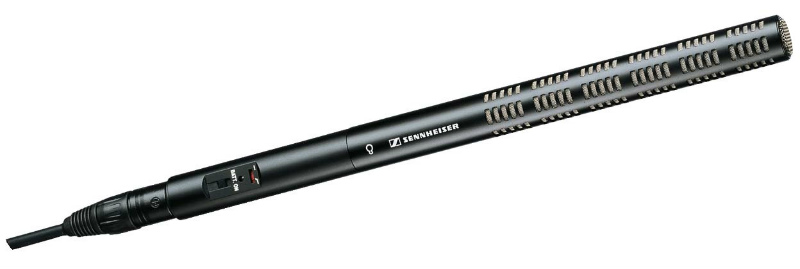

The ME 66 is a short gun microphone head designed for use with the K6 and K6P powering modules. It is especially suitable for reporting, film and broadcast location applications and for picking up quiet signals in noisy or acoustically live environments as it discriminates against sound not emanating from the main pick-up
direction. Matt black, anodised, scratch-resistant finish.
Features
direction. Matt black, anodised, scratch-resistant finish.
Features
Super-cardioid/lobar pick-up pattern
Highly directional
Low inherent self-noise
High sensitivity
Wide frequency response
Highly directional
Low inherent self-noise
High sensitivity
Wide frequency response
Delivery Includes
1 ME 66
Technical Data
Transducer principle (Microphone) pre-polarised condenser microphone
Pick-up pattern super-cardioid/lobar
Frequency response (microphone) 40.....20000 Hz +- 2,5 dB
Sensitivity in free field, no load (1kHz) 50 mV/Pa +- 2,5 dB
Nominal impedance 200 Ohm (K6)
Min. terminating impedance 1000 Ohm ( K6)
Equivalent noise level 10 dB
Equivalent noise level weighted as per CCIR 468-3 21 dB
Maximum sound pressure level (passiv) 125 dB / 1 kHz (K = 1%)
Dimensions d 22,5 x 221 mm
Pick-up pattern super-cardioid/lobar
Frequency response (microphone) 40.....20000 Hz +- 2,5 dB
Sensitivity in free field, no load (1kHz) 50 mV/Pa +- 2,5 dB
Nominal impedance 200 Ohm (K6)
Min. terminating impedance 1000 Ohm ( K6)
Equivalent noise level 10 dB
Equivalent noise level weighted as per CCIR 468-3 21 dB
Maximum sound pressure level (passiv) 125 dB / 1 kHz (K = 1%)
Dimensions d 22,5 x 221 mm
Spesifikasjoner
| Produsent | Sennheiser |
