FEATURES

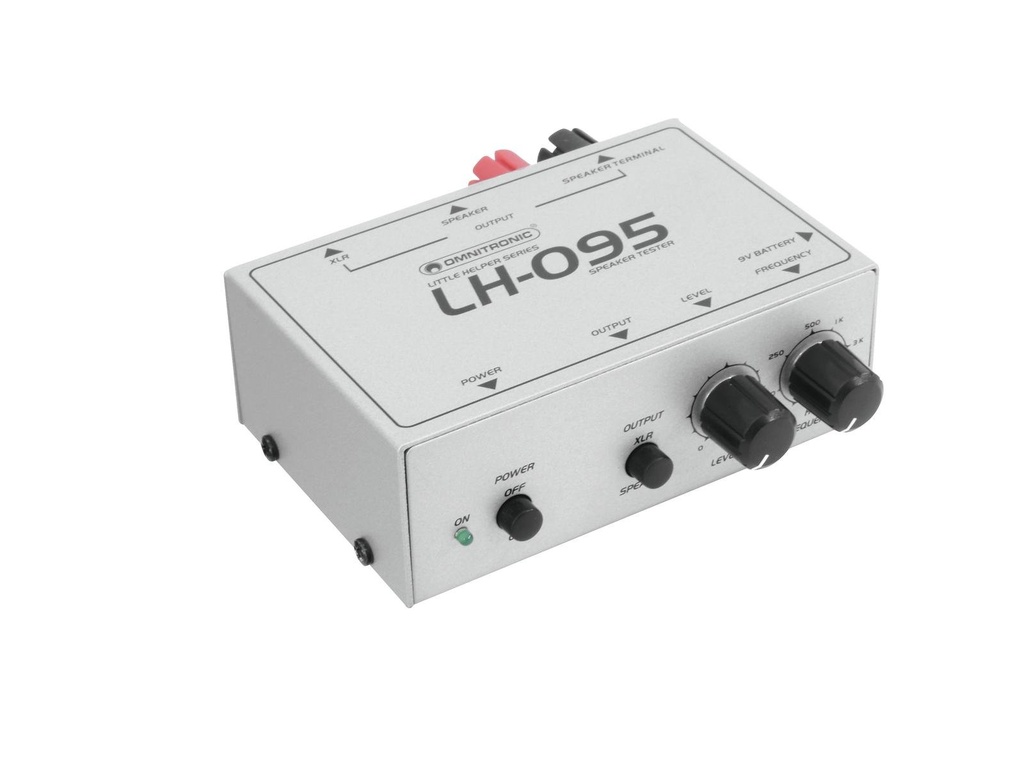

Speaker testing device with adjustable sinus frequency
- Quick and easy check of loudspeakers and sound systems - without assembling effort
- All you need is the LH-095 and a cable
- The optimum tool for sound engineers and rental companies
- Adjustable sinus frequency 20 Hz - 20 KHz
- level control
- Signal output via Speaker, XLR plug or speaker connectors (banana plugs can be used)
- With spring bow and belt clip
Package contents
- 1 x device, 1 x user manual, 1 x battery, 4 x feet
TECHNICAL SPECIFICATIONS
| Output power: | 1 W RMS (8 ohms) |
| Power connection: | Battery/battery pack |
| Battery: | 1 x 9.0 V E block 6F22 zinc carbon included |
| Frequency range: | Variable 20 - 20000 Hz |
| Connections: | Output: line via 1 x 3-pin XLR 2 V Speaker via 1 x speaker built-in socket (F) Speaker via 1 x screw terminal |
| Dimensions: | Width: 11,5 cm Depth: 9,5 cm Height: 4,5 cm |
| Weight: | 430 g |
PACKAGING UNITS
| PU | EAN | WEIGHT | DIMENSIONS |
|---|---|---|---|
| 1 | 4026397286397 | 0,60 kg | 23cm x 13,5cm x 8,5cm |
| 20 | 4026397286700 | 12,90 kg | 68cm x 48cm x 19cm |
| Power supply: | 230 V AC, 50 Hz |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Rated power: | 175 W RMS LF; 75 W RMS HF |
| Program power: | 350 W |
| Frequency range: | 65 - 20000 Hz |
| Sensitivity: | 95 dB (1W/1m) |
| Control: | Bluetooth |
| Equalizer: | Master: 1 x 2-band tone control |
| Attachment system: | Ø 35mm |
| Circuitry: | Class D Biamp |
| Connections: | Output: 1 x line via 3-pin XLR Input: 1 x line via 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Input: 1 x line via stereo RCA Input: 1 x line via 3-pin XLR |
| Input channels: | 1 x mono via XLR or RCA or bluetooth, channel control via Rotary knob 1 x mono with Mic-line switch via 3-pin XLR/6.35mm jack (F) combination socket (mounting version), channel control via Rotary knob |
| Speakers: | 1 x woofer (10") approx 25 cm with ferrit magnet Voice coil lows (1.5") approx 4 cm Voice coil compression tweeter highs (1.35") appox 3,5cm |
| Type of speaker: | Compact cabinet speaker |
| Dimension: | Width: 31 cm Depth: 32 cm Height: 48 cm |
| Weight: | 11.15 kg |
