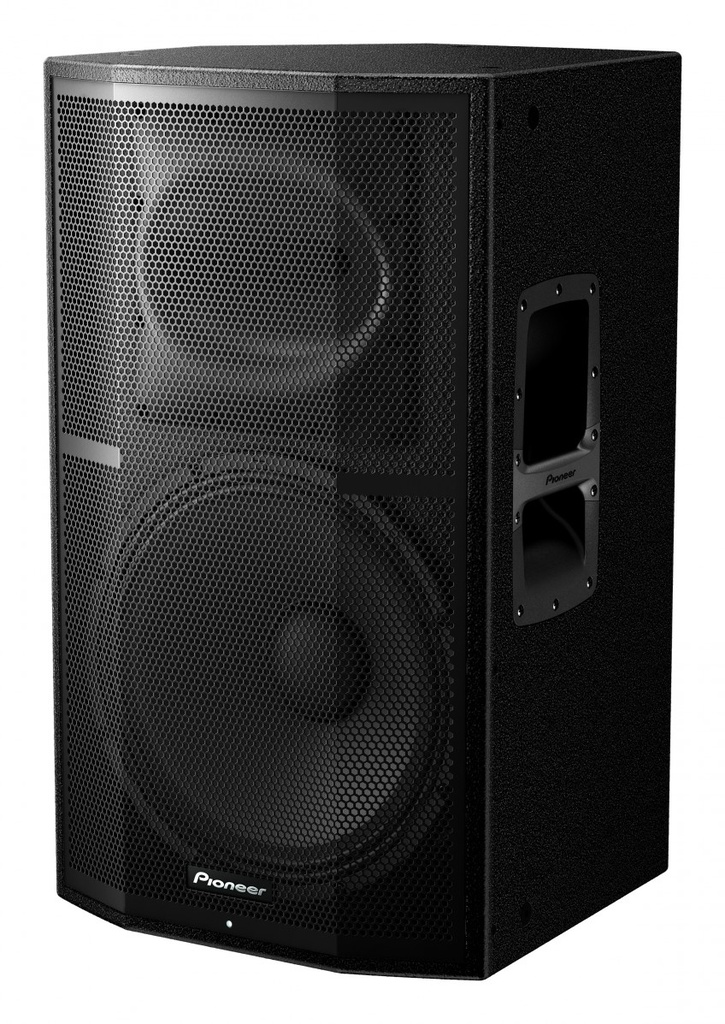

Pioneer Professional Audio XPRS15

Hardwood enclosures and high-quality driver materials produce a natural sound

_x000D_

The speakers are enclosed in 15 mm birch plywood cabinets to deliver a natural, dynamic sound. Pioneer’s patented AFAST technology drastically reduces standing waves that can produce a muffled response in the low to mid ranges. An acoustic tube in the cabinet absorbs just the standing waves, increasing the low frequency response.

_x000D_

The XPRS15 uses lightweight 15-inch ferrite LF drivers and 1.75-inch titanium diaphragm compression drivers.

_x000D_

Powersoft Class D amps for reliable, high-powered performance

_x000D_

Powersoft’s new Class D amp modules produce 2400 W (peak) or 1200 W (continuous) output, similar to that of larger stand-alone speaker amplifiers. The amps are equipped with Power Factor Correction (PFC) to reduce power consumption while ensuring reliability and a steady performance in all environments.

_x000D_

The auto-ranging power supply means you plug in the XPRS Series anywhere in the world – including venues with generators or temporary power supplies – and expect the same high quality sound.

_x000D_

Advanced protection features help prolong your speakers’ life

_x000D_

We’ve packed the speakers with features to protect the driver, amp and power supply – giving you peace of mind, consistent high quality sound, and extending the life of your sound system.

_x000D_

Amplifier protection

Thermal limiting: cuts off to prevent overheating. Output overcurrent: reduces the speaker’s output to safe levels in the event of output overcurrent. _x000D_

Speaker protection

DC offset removal: shuts down to prevent further damage if the speaker blows. Stationary High Frequency Protection: protects the speaker from loud bursts such as feedback. Input voltage limiter: Peak and RMS. Output voltage limiter: cuts the LF and compression drivers separately when either reaches their peak. _x000D_

Power protection

AC mains over-voltage protection: protects against power surges. _x000D_

Plus the status LED on the front of the cabinet can has three settings – power, limiter or off – giving an optional visual reference to the status of the speaker.

_x000D_

High-performance drivers deliver a powerful, full range sound

_x000D_

Both speakers use a high-grade ferrite LF driver (15-inch) and a 1.75-inch titanium diaphragm compression driver to reproduce a clean, full range sound with low distortion even at high outputs.

_x000D_

Four EQ modes for a variety of genres and environments

_x000D_

Buttons on the back of the speakers give you instant access to four EQ modes:

Flat: neutral production of the source audio. Bass +: amplifies the bass for dance music events. Speech: produces clear vocal sounds for seminars and speeches. Wedge: reduces the low frequencies to give a more balanced sound if you’re using the speaker as a floor monitor. _x000D_

Rotatable horn lets you mount the speakers vertically and horizontally

_x000D_

The speakers’ horn gives a dispersion of 90 x 60 degrees and can be rotated by 90 degrees – giving you flexibility to mount the speakers vertically or horizontally to choose the coverage to suit your space.

_x000D_

Wedge shape and polemount socket with tilt for a choice of three positions

_x000D_

The XPRS15 speakers are wedge shaped, making them ideal floor monitors. Or the polemount socket can be set to straight or tilted to 7 degrees to direct the sound exactly where you want it.

_x000D_

Multiple inputs and outputs for flexible, easy set-up

_x000D_

The speakers have two balanced XLR/TRS combo sockets and an unbalanced RCA connection, so you can connect a MIC and other external devices at the same time – including using an AUX cable to connect and play directly from portable audio players, line-level mixers and tablets/smartphones. Each input can be controlled individually or using the master controls for lines one and two. Plus two balanced XLR through output terminals enable easy connection to other speakers and subs.
