The DCon series features three advanced products, all designed to fit standard European
in-wall junction boxes with a depth of 50mm and compatible with widely used EU cover
frames, making them perfect for seamless integration into commercial, educational,
and entertainment AV environments.

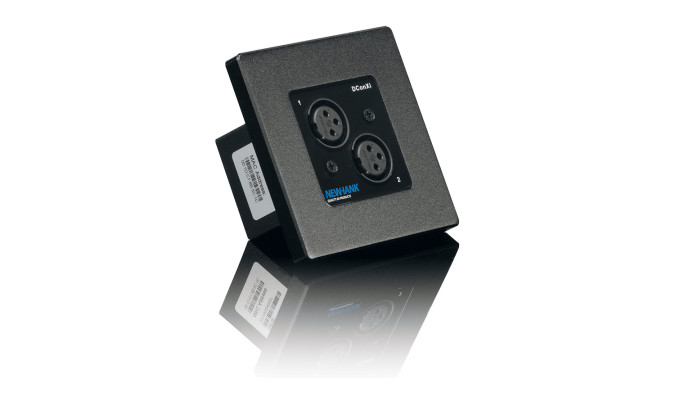

This two-channel XLR input panel converts analog audio to Dante, the industry-standard
audio-over-IP protocol. Each input is equipped with an adjustable preamp that offers up to
42dB of amplification plus -100 to +27dB digital gain, along with switchable Phantom Power
for handling microphones and other audio sources with precision. DConXi also provides an
API for integration with third-party control systems, making it an ideal choice for customized
installations.
| System specifications | ||
| Inputs | 2 x XLR female (in) | |
| 3.5 mm Jack (Stereo) | ||
| Control | 2 buttons - Mic / Line switching | |
| Indicators | 2 LED’s (RGB) - Input status | |
| Configurable settings | IP settings | |
| Device name | ||
| Input range (Mic / Line) | ||
| Gain | ||
| Phantom power | ||
| DSP (EQ) | ||
| Mixing | ||
| Configuration | Audac Touch™ | |
| Integrated DSP | Yes (EQ) | |
| Automatic level control | Yes | |
| Phantom power | +48 V DC | |
| Power | Supply | PoE powered (IEEE 802.3at) |
| Connectors | 3.5 mm Jack stereo (audio in) | |
| RJ45 (network + PoE) | ||
| 1 x XLR female (audio in) | ||
| Product Features | ||
| Construction | ABS | |
| Front finish | Elegant front panel with glass | |
| Colours | White (RAL9003) (DWP215/W) | |
| Black (RAL9005) (DWP215/B) | ||
| Compatible devices | Any Dante™/AES67 compatible audio device | |
| Dimensions | 80 x 80 mm (W x H) (Remote wall panel) | |
| Installation standard | Compatible with EU installation materials | |
Spesifikasjoner
| Produsent | Newhank |
