The DCon series features three advanced products, all designed to fit standard European
in-wall junction boxes with a depth of 50mm and compatible with widely used EU cover
frames, making them perfect for seamless integration into commercial, educational,
and entertainment AV environments.

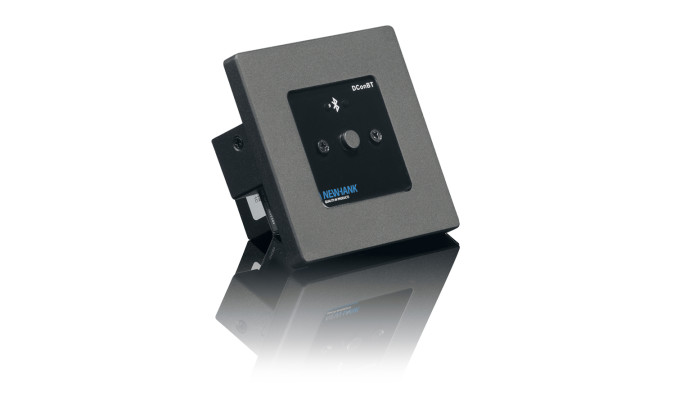

This 2×2 Bluetooth converter brings wireless audio flexibility to any Dante installation.
DConBT offers a host of control features, including call pickup, reject, music player control,
and customizable pairing button behavior. Additionally, users can define the Bluetooth radio
name to personalize their wireless audio experience. Like its counterparts, DConBT is
API-enabled for easy integration with third-party applications.
| System specifications | ||
| Inputs | 2 x XLR female (in) | |
| 3.5 mm Jack (Stereo) | ||
| Control | 2 buttons - Mic / Line switching | |
| Indicators | 2 LED’s (RGB) - Input status | |
| Configurable settings | IP settings | |
| Device name | ||
| Input range (Mic / Line) | ||
| Gain | ||
| Phantom power | ||
| DSP (EQ) | ||
| Mixing | ||
| Configuration | Audac Touch™ | |
| Integrated DSP | Yes (EQ) | |
| Automatic level control | Yes | |
| Phantom power | +48 V DC | |
| Power | Supply | PoE powered (IEEE 802.3at) |
| Connectors | 3.5 mm Jack stereo (audio in) | |
| RJ45 (network + PoE) | ||
| 1 x XLR female (audio in) | ||
| Product Features | ||
| Construction | ABS | |
| Front finish | Elegant front panel with glass | |
| Colours | White (RAL9003) (DWP215/W) | |
| Black (RAL9005) (DWP215/B) | ||
| Compatible devices | Any Dante™/AES67 compatible audio device | |
| Dimensions | 80 x 80 mm (W x H) (Remote wall panel) | |
| Installation standard | Compatible with EU installation materials | |
Spesifikasjoner
| Produsent | Newhank |
