Varenummer:
503863

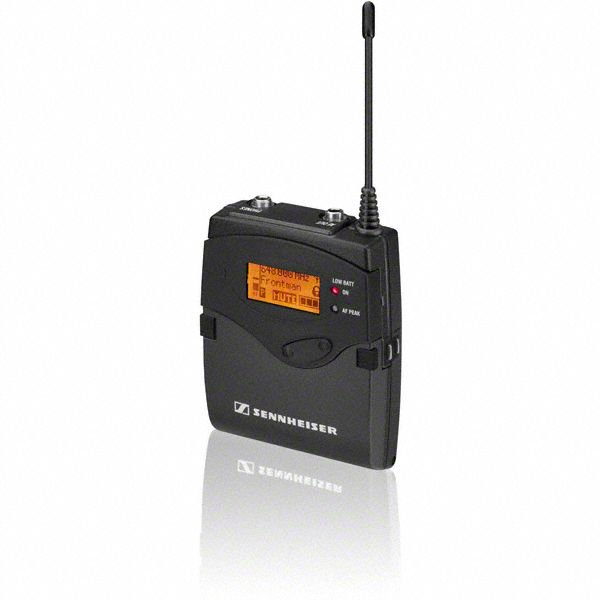

It is nice when you can concentrate fully on the picture because you know the sound is reliable. This camera receiver allows you to do just that. Equipped with adaptive diversity, the camera receiver ensures reliable reception. Five frequency ranges with up to 75 MHz switching bandwidth also provide optimum flexibility for components of the 2000 series. The transmitter settings can be synchronized quickly from EK 2000 using infrared technology.
Features
Features
Sturdy all-metal housing
Up to 3000 frequencies in up to 75 MHz switching bandwidth
20 fixed frequency bands with up to 64 compatible presets
6 bands with up to 64 tunable channels
Adaptive-diversity technology for high reliability
Headphone output for optimum control
Pilot tone squelch can be set in 2 dB steps for interference-free reception
Frequency scan feature searches for available reception frequencies
Cordless infrared synchronization of transmitters
User-friendly menu interface with a backlit graphic display
HDX compander for crystal clear sound
Enhanced AF frequency response
4-stage battery status display
External charging contacts for recharging the BA2015 battery
Auto-lock feature to prevent settings from being changed accidentally
Wide range of accessories included in delivery
RF frequency range 516..... 865 MHz
Transmission/receiving frequencies 1680 (max. 20 Presets)
Switching bandwidth 42 MHz
Peak deviation +/- 48 kHz
Compander HDX
Frequency response (microphone) 80.....18000 Hz
Signal-to-noise ratio > 115 dB(A)
THD, total harmonic distortion < 0,9 %
In compliance with ETS 300422 , ETS 300445 , CE , FCC
Audio-XLR connector 3,5 mm jack
RF output power 10/30 mW
Operating time (transmitter) > 8 h
Input voltage range 1,8 V line
Input voltage range max. 3,0 V eff line
Dimensions (Transmitter) 82 x 64 x 24 mm
Weight (Transmitter) ~ 160 g
Transmission/receiving frequencies 1680 (max. 20 Presets)
Switching bandwidth 42 MHz
Peak deviation +/- 48 kHz
Compander HDX
Frequency response (microphone) 80.....18000 Hz
Signal-to-noise ratio > 115 dB(A)
THD, total harmonic distortion < 0,9 %
In compliance with ETS 300422 , ETS 300445 , CE , FCC
Audio-XLR connector 3,5 mm jack
RF output power 10/30 mW
Operating time (transmitter) > 8 h
Input voltage range 1,8 V line
Input voltage range max. 3,0 V eff line
Dimensions (Transmitter) 82 x 64 x 24 mm
Weight (Transmitter) ~ 160 g
Spesifikasjoner
| Produsent | Sennheiser |
