Varenummer:
503930

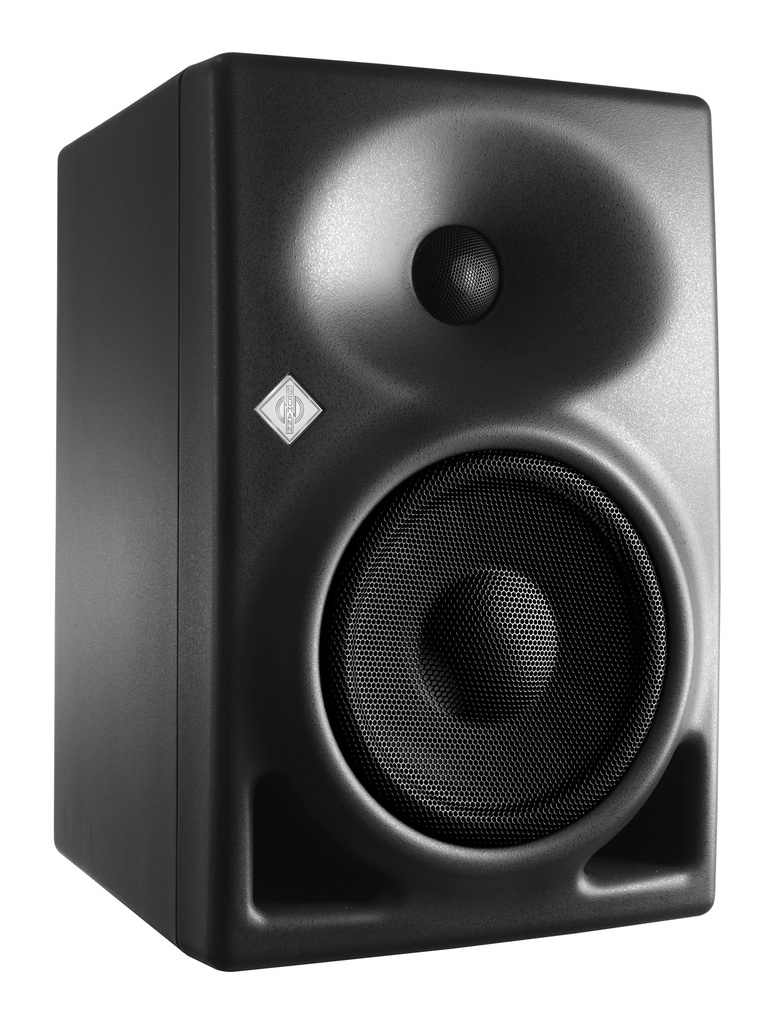

Den verdensberømte produsenten av mikrofoner, Neumann, har nå lansert KH 120, som er den første i en helt ny serie høykvalitets studio monitorer.
KH 120 A er designet til bruk som nær-felt lytting i studio, eller som bakhøyttaler i et større 5.1 studio. Neumann har med mange års erfaring innen akustiske og elektroniske målinger laget en høyttaler som skal ha en mest mulig autentisk lydgjengivelse. KH120 A er utformet med Mathematically Modeled Dispersion waveguide (MMD (TM), justerbar romkorreksjon, og analog klasse-AB forsterkere som gir et enormt headroom. Monitoren takler det meste av lydkilder og akustiske utfordringer i vansklige rom.
KH 120 er perfekt til tracking, mixing og mastering av musikk, broadcast, prosjekt- og post-production studioer.
Supertilbudet er kun tilgjengelig ut juni, så vær rask! NB: pris pr stk.
Acoustics
-3 dB free field frequency response 52 Hz … 21 kHz, ± 3 dB
Pass band free field frequency response 54 Hz … 20 kHz, ± 2 dB
Self-generated noise
(with input gain set to 100 dB for 0 dBu) <20 dB(A) at 10 cm
Sine wave output with a THD < 0.5 % at 1 m 95 dB SPL (>100 Hz)
Max. SPL In half space at 3% THD at 1m 111.1 dB SPL
(averaged between 100 Hz and 6 kHz)
Electronics
Woofer amplifier, cont.(peak) output power* 50 W (80 W)
Tweeter amplifier, cont.(peak) output power* 50 W (80 W)
Controller design Analog, active
Crossover Frequency 2.0 kHz
Crossover Slope (dB/oct.) 24, 4th order
Equalization - Bass 0, -2.5, -5, -7.5 dB
Equalization - Mid 0, -1.5, -3, -4.5 dB
Equalization - High +1, 0, -1, -2 dB
Protection circuitry Limiter: low, high
Infrasonic filter frequency; slope 30 Hz; 6 dB/oct.
Analog Input
Impedance, electrically balanced XLR, >10 kΩ
Input gain control (sensitivity) 0 dBu to -15 dBu
Output level control 94, 100, 108, 114 dB SPL
CMRR >56 dB @ 15 kHz
Displays and Mains Power
Displays and indicators - power on Neumann logo “White”
Displays and indicators - limit/clip Neumann logo “Red”
Mains Power Supply, voltage; frequency 100-240 V~; 50/60 Hz
Power consumption – Idle 20 W
Power consumption – Full output AC 200 W
Mechanics
Cabinet surface finish, color: custom Painted aluminium, Anthracite (RAL 7021)
Operating conditions +10° C to +40° C (+50° F to +104° F),
<90% RH, non-condensing
Transport/storage conditions −25° C to +70° C (−13° F to 158° F),
<90% RH, non-condensing
Drivers Magnetically shielded
Woofer 130 mm (5.25”)
Tweeter 25 mm (1”)
Mounting points 2 x M8 on rear panel
Height x width x depth, mm (inches) 277 x 182 x 220 mm (10 7/8” x 7 1/8” x 8 5/8”)
Internal net volume / external volume 6.5 liters / 9.7 liters
Weight 6.2 kg (13.7 lbs)
-3 dB free field frequency response 52 Hz … 21 kHz, ± 3 dB
Pass band free field frequency response 54 Hz … 20 kHz, ± 2 dB
Self-generated noise
(with input gain set to 100 dB for 0 dBu) <20 dB(A) at 10 cm
Sine wave output with a THD < 0.5 % at 1 m 95 dB SPL (>100 Hz)
Max. SPL In half space at 3% THD at 1m 111.1 dB SPL
(averaged between 100 Hz and 6 kHz)
Electronics
Woofer amplifier, cont.(peak) output power* 50 W (80 W)
Tweeter amplifier, cont.(peak) output power* 50 W (80 W)
Controller design Analog, active
Crossover Frequency 2.0 kHz
Crossover Slope (dB/oct.) 24, 4th order
Equalization - Bass 0, -2.5, -5, -7.5 dB
Equalization - Mid 0, -1.5, -3, -4.5 dB
Equalization - High +1, 0, -1, -2 dB
Protection circuitry Limiter: low, high
Infrasonic filter frequency; slope 30 Hz; 6 dB/oct.
Analog Input
Impedance, electrically balanced XLR, >10 kΩ
Input gain control (sensitivity) 0 dBu to -15 dBu
Output level control 94, 100, 108, 114 dB SPL
CMRR >56 dB @ 15 kHz
Displays and Mains Power
Displays and indicators - power on Neumann logo “White”
Displays and indicators - limit/clip Neumann logo “Red”
Mains Power Supply, voltage; frequency 100-240 V~; 50/60 Hz
Power consumption – Idle 20 W
Power consumption – Full output AC 200 W
Mechanics
Cabinet surface finish, color: custom Painted aluminium, Anthracite (RAL 7021)
Operating conditions +10° C to +40° C (+50° F to +104° F),
<90% RH, non-condensing
Transport/storage conditions −25° C to +70° C (−13° F to 158° F),
<90% RH, non-condensing
Drivers Magnetically shielded
Woofer 130 mm (5.25”)
Tweeter 25 mm (1”)
Mounting points 2 x M8 on rear panel
Height x width x depth, mm (inches) 277 x 182 x 220 mm (10 7/8” x 7 1/8” x 8 5/8”)
Internal net volume / external volume 6.5 liters / 9.7 liters
Weight 6.2 kg (13.7 lbs)
Spesifikasjoner
| Produsent | Neumann |
