Varenummer:
505626

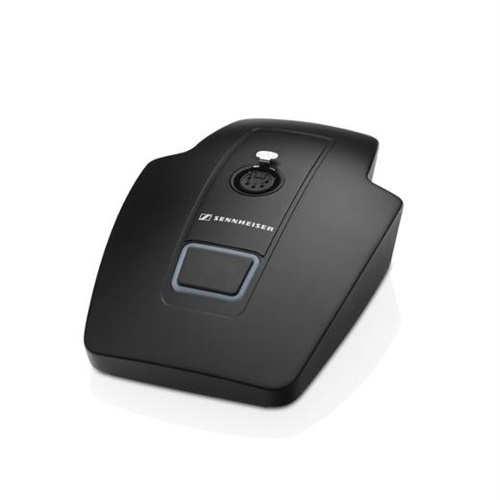

The rugged housing of the functionally and unobtrusively designed MAT 153-S provides a solid ground for XLR-5 gooseneck microphones. A convenient microphone button is featured with a bi color light ring for clear visual feedback. The TTL-logic output serves for various control purposes such as camera control. The MAT 153-S is as versatile as it is to operate.
Features Microphone modes:
Toggle on/off
Push to mute
Push to talk
permanent on (external LED control) Connector:
MIC IN: XLR-5F
MIC OUT: XLR-3M
3x terminal
Features Microphone modes:
Toggle on/off
Push to mute
Push to talk
permanent on (external LED control) Connector:
MIC IN: XLR-5F
MIC OUT: XLR-3M
3x terminal
| XLR-5F, Pin assignment: 1 = gnd, 2 = hot (+), 3 = cold (-), 4 = LED (-), 5 = LED (+) XLR-3M, Pin assignment: 1 = gnd, 2 = +, 3 = - Pin assignment: trigger signal at the logic connector: Logic in (external LED control), GND, Logic out (switch signal) |
|
| Weight | approx. 1,206 g 1526 g |
| Current consumption | 3.7 mA |
| Output voltage | high level output voltage > 2.4 V, low level output voltage < 0.4 V |
Spesifikasjoner
| Produsent | Sennheiser |
