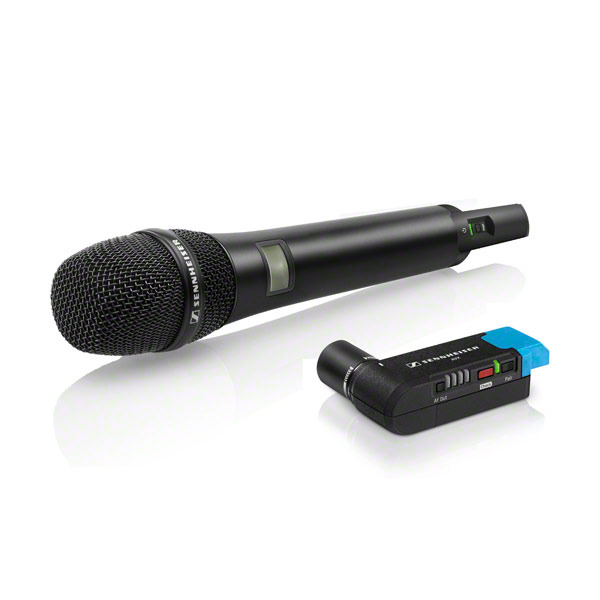

Sennheiser AVX-835 SET-3

Sennheiser AVX-835 SET-3

kr 0,00 kr 0,00 (MVA ekskl.)

  • Produsent
Legg i handlekurven
Kontakt oss

Varenummer: 505853

The AVX-835 SET is the perfect digital wireless microphone for film projects. The system fully self configures and is ready to film within seconds. Its ultra compact receiver fits directly into the XLR audio input of your camera or recording device. The robust handheld transmitter is ideal for street interview situations.

_x000D_

Overview

_x000D_

_x000D_

The AVX-835 SET includes a handheld microphone, the plug on receiver and all accesories to operate out of the box with camcorders as well as DSLR cameras. It features self configuring digital transmission which eliminates time-consuming radio frequency setup. The ultra compact receiver rotates around the XLR connector to avoid collision with other devices mounted on your camera. It switches on and off automatically with your camera - saving battery power. The AVX matches perfectly to your camera's input sensitivity without having to adjust the audio level on the microphone. From professional wedding video to documentaries, from street interviews to corporate videos, the AVX just works allowing you to concentrate on creativity.

_x000D_

Features

_x000D_
    _x000D_
  • _x000D_

    Very fast setup

    • _x000D_
  • _x000D_

    Plugs directly into XLR audio input

    • _x000D_
  • _x000D_

    Ultra compact receiver

    • _x000D_
  • _x000D_

    Switches on/off by P48 Phantom power

    • _x000D_
  • _x000D_

    Optimized dynamic range

    • _x000D_
  • _x000D_

    Auto frequency management

    • _x000D_
  • _x000D_

    AES 256 encryption

    • _x000D_
  • _x000D_

    License free

    • _x000D_
  • _x000D_

    Accessories included for DSLR use

    • _x000D_
  • _x000D_

    Metal housing

    • _x000D_
  • _x000D_

    Made in Germany

_x000D_

Technical Data

_x000D_

System

_x000D_
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
Frequency response20 to 20.000 Hz
Dynamic range> 128 dB (A)
THD, total harmonic distortiontyp. < 0,1 %
Audio sampling24 bit/48 kHz
Signal-to-noise ratio= 109 dB (A)
RF frequency range2,400 to 2,483.5 MHz
ModulationGFSK with back channel
Transmission methodTDMA, time diversity, frequency diversity, fast switching antenna diversity
Latency3.9 ms
Audio codecAPT-X Live
Operating temperature– 10 °C to +55 °C
Storage temperature– 20 °C to +70 °C (The temperature range is influenced by the battery characteristics)
_x000D_

SKM D1

_x000D_
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
Frequency response50 to 20,000 Hz
RF output poweradaptive, up to 100 mW, 10 mW fix (country-specific)
DisplayLCD
Weightapprox. 280 g incl. microphone head
Input sensitivityautomatic sensitivity adjustment
Battery Specification2 x AA size battery (1.5 V), Operating time: typ. 6 h
AccupackBA 10 (Li-Ion, 3.7 V), Operating time: typ. 11 h (optional accessory)
_x000D_

EM D1

_x000D_
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
RF sensitivity<-90 dBm
RF output powerBack channel 10mW/100mW (country-specific)
Audio outputMic/line level switch –12 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu
Low-cut filterat 120 Hz
Equalizer7-band graphic equalizer
Automatic gain control (AGC)compression/expansion with automatic make-up gain function
DisplayOLED
ConnectionXLR/¼" (6.3 mm) jack
Antenna connector2 x Rev-SMA
Network socketRJ45
Network protocolMedia Control Protocol, UDP IPv4 (DHCP, Manual)/IPv6
Power supply12 V DC hollow jack
Current consumption350 mA
Weightapprox. 824 g
_x000D_

SK D1

_x000D_
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
RF output poweradaptive up to 100mW, 10mW fix (country-specific)
Connection3.5 mm jack socket, lockable
Weightapprox. 85 g
Input sensitivityautomatic sensitivity adjustment
Battery Specification2 x AA size battery (1,5V), Operating time: typ. 6 h
AccupackBA 30 (Li-Ion, 3.7V), Operating time: typ. 11 h
MicrophoneFrequency response: 50 to 20,000 Hz
Max. input level: 2.2 V RMS
LineFrequency response: 20 to 20,000 Hz
Max. input level: 3.3 V RMS
Input impedance1 M?
_x000D_

What's in the box?

_x000D_
    _x000D_
  • EM-D1 rackmount receiver
    • _x000D_
  • SKM-D1 handheld transmitter
    • _x000D_
  • MZQ microphone clamp
    • _x000D_
  • NT-12 power supply
    • _x000D_
  • Transport Case
    • _x000D_
  • User Manual

Spesifikasjoner

Produsent Sennheiser
