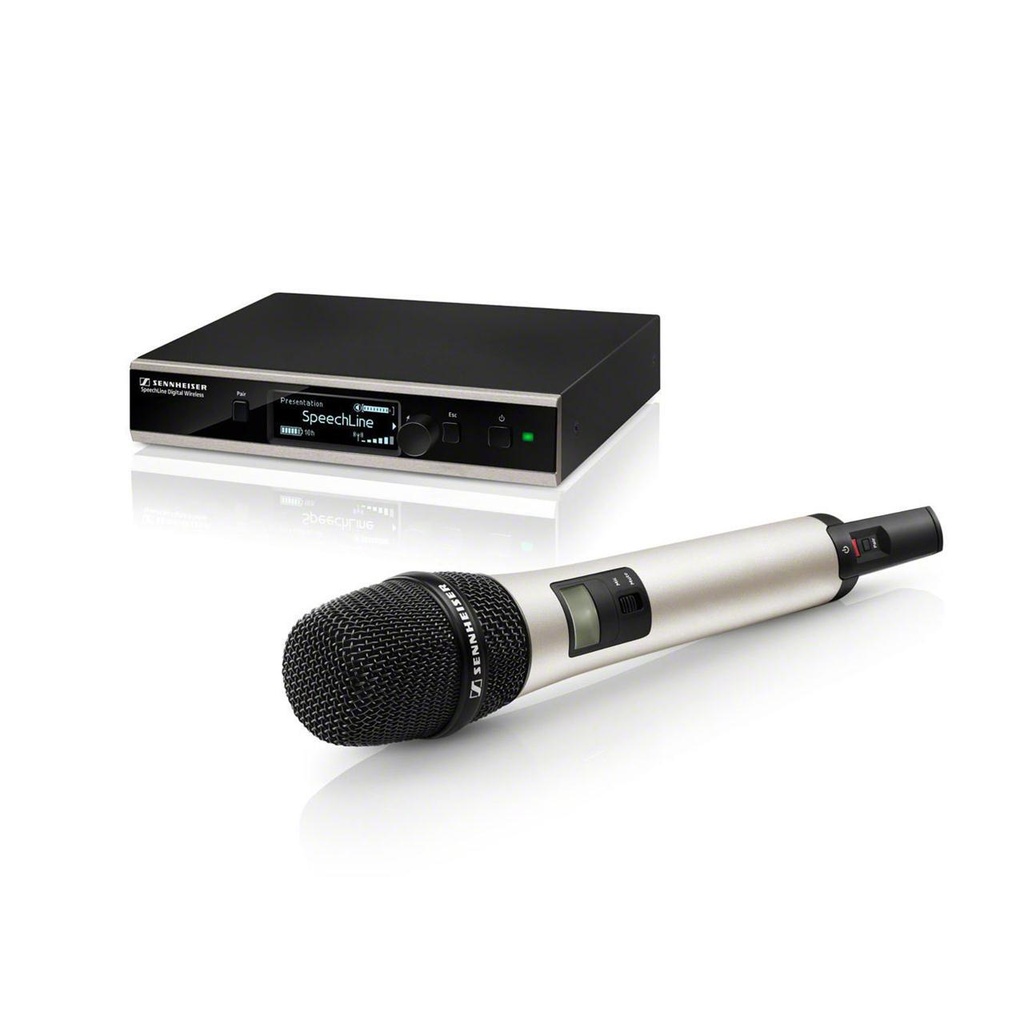

Sennheiser SL Komplett sett m/Håndholdt

Sennheiser SL Komplett sett m/Håndholdt

kr 0,00 kr 0,00 (MVA ekskl.)

  • Produsent
Legg i handlekurven
Kontakt oss

Varenummer: 505881

The SL Handheld Set includes the handheld transmitter, stationary receiver and everything to use or install.
It comes wiht the MME 865 condensor capsule – so not just a capsule, but the best capsule for speech.

All sets also come with rechargeable accupacks with up to 15 hrs of operating time. The accupack is also USB rechargeable, the cable is in the box, the USB socket is presumably just a step away from you.

The two types of sets are either Rackmount Sets (-R version), which come with everything needed for rack mounting, or Case Sets (-C version), in a transport case – without rackmounts, if you do not want to install the receiver.

_x000D_

Technical Data

_x000D_

System

_x000D_
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
Frequency response20 to 20.000 Hz
Dynamic range> 128 dB (A)
THD, total harmonic distortiontyp. < 0,1 %
Audio sampling24 bit/48 kHz
Signal-to-noise ratio= 109 dB (A)
RF frequency range2,400 to 2,483.5 MHz
ModulationGFSK with back channel
Transmission methodTDMA, time diversity, frequency diversity, fast switching antenna diversity
Latency3.9 ms
Audio codecAPT-X Live
Operating temperature– 10 °C to +55 °C
Storage temperature– 20 °C to +70 °C (The temperature range is influenced by the battery characteristics)
_x000D_

SKM D1

_x000D_
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
Frequency response50 to 20,000 Hz
RF output poweradaptive, up to 100 mW, 10 mW fix (country-specific)
DisplayLCD
Weightapprox. 280 g incl. microphone head
Input sensitivityautomatic sensitivity adjustment
Battery Specification2 x AA size battery (1.5 V), Operating time: typ. 6 h
AccupackBA 10 (Li-Ion, 3.7 V), Operating time: typ. 11 h (optional accessory)
_x000D_

EM D1

_x000D_
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
RF sensitivity<-90 dBm
RF output powerBack channel 10mW/100mW (country-specific)
Audio outputMic/line level switch –12 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu
Low-cut filterat 120 Hz
Equalizer7-band graphic equalizer
Automatic gain control (AGC)compression/expansion with automatic make-up gain function
DisplayOLED
ConnectionXLR/¼" (6.3 mm) jack
Antenna connector2 x Rev-SMA
Network socketRJ45
Network protocolMedia Control Protocol, UDP IPv4 (DHCP, Manual)/IPv6
Power supply12 V DC hollow jack
Current consumption350 mA
Weightapprox. 824 g
_x000D_

SK D1

_x000D_
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
RF output poweradaptive up to 100mW, 10mW fix (country-specific)
Connection3.5 mm jack socket, lockable
Weightapprox. 85 g
Input sensitivityautomatic sensitivity adjustment
Battery Specification2 x AA size battery (1,5V), Operating time: typ. 6 h
AccupackBA 30 (Li-Ion, 3.7V), Operating time: typ. 11 h
MicrophoneFrequency response: 50 to 20,000 Hz
Max. input level: 2.2 V RMS
LineFrequency response: 20 to 20,000 Hz
Max. input level: 3.3 V RMS
Input impedance1 M?
_x000D_

What's in the box?

_x000D_
    _x000D_
  • EM-D1 rackmount receiver
    • _x000D_
  • SKM-D1 handheld transmitter
    • _x000D_
  • MZQ microphone clamp
    • _x000D_
  • NT-12 power supply
    • _x000D_
  • Transport Case
    • _x000D_
  • User Manual

Spesifikasjoner

Produsent Sennheiser
