Sennheiser SL TS133 Svanehals Sender

Sennheiser SL TS133 Svanehals Sender

kr 0,00 kr 0,00 (MVA ekskl.)

  • Produsent
Legg i handlekurven
Kontakt oss

Varenummer: 506626

Overview

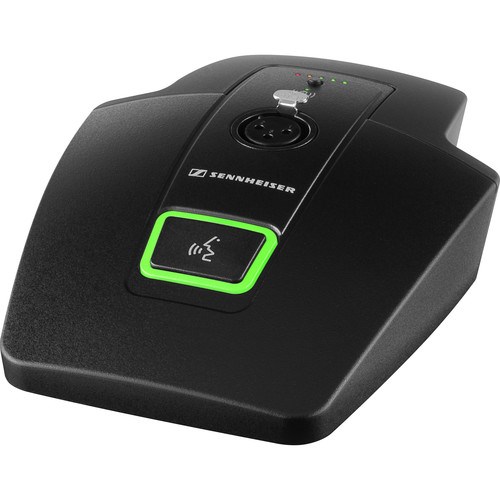

Det trådløse SL bordstativet 133-S DW er spesiallaget for tale. SL DW trådløst bordstativ 133-S er kompatibelt med alle Sennheiser XLR-3 svanehalsmikrofoner og de legendariske Sennheiser-kapslene og er på den måten optimalisert for paneldebatter, taler og foredrag.

SL bordstativ 133-S DW er helt uavhengig av kabler, noe som gir brukerne en svært fleksibel løsning.

Det benytter den mest vanlige trådløse ladestandarden Qi. Det kan lades trådløst eller via USB. Den trådløse ladestasjonen CHG 2W for to mobile enheter kan leveres separat. Settet leveres med oppladbare accupacks med opptil 10 timers driftstid.

SL bordstativ 133-S DW kan monitoreres og styres med Sennheiser Control Cockpit.


Features

    • Qi-lading – den mest vanlige trådløse ladestandarden
    • Tydelig indikasjon av batterilevetid via dedikerte lysdioder for batteristatus
    • Kompatibel med alle Sennheiser XLR-3 svanehalser for all slags bruk innenfor tale og foredrag
    • Kan fjernstyres med Sennheiser Control Cockpit

Hva er med i esken?

  • - SL bordstativ 133-S DW
  • - BA 40 oppladbart batteri
  • - USB-kabel
  • - Hurtigguide
  • - Sikkerhetsguide

Technical Data

  • Frekvensrespons
    75 to 20,000 Hz
  • Total harmonisk forvrengning (THD)
    typ. 0.1 %
  • Vekt
    approx. 650 g
    • Storage temperature
      -20 °C to 70 °C, (-4 °F to 158 °F)
    • Operating temperature
      0 °C to 40 °C (14 °F to 131 °F)
    • Signal-til -støy-forhold
      > 90 dB(A)
    • RF utgangeffekt
      adaptive, up to 250 mW (country-specific)
    • Driftstid
      typ. 10 h with BA 40
    • Dynamic range
      > 120 dB(A)
    • Frekvensområder
      EU: 1,880 to 1,900 MHz
      USA: 1,920 to 1,930 MHz
      Brazil: 1,910 to 1,920 MHz
      Taiwan: 1,880 to 1,895 MHz
      Japan: 1,893 to 1,906 MHz
    • Utgangimpedans
      30 kO
    • Maks. inngangspenning
      1.7 V RMS
    • Sensitivitet
      < -90 dBm
    • Sampling rates
      24 bit/48 kHz
    • XLR Microphone Inputs
      XLR 3F





_x000D_

Technical Data

_x000D_

System

_x000D_
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
Frequency response20 to 20.000 Hz
Dynamic range> 128 dB (A)
THD, total harmonic distortiontyp. < 0,1 %
Audio sampling24 bit/48 kHz
Signal-to-noise ratio= 109 dB (A)
RF frequency range2,400 to 2,483.5 MHz
ModulationGFSK with back channel
Transmission methodTDMA, time diversity, frequency diversity, fast switching antenna diversity
Latency3.9 ms
Audio codecAPT-X Live
Operating temperature– 10 °C to +55 °C
Storage temperature– 20 °C to +70 °C (The temperature range is influenced by the battery characteristics)
_x000D_

SKM D1

_x000D_
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
Frequency response50 to 20,000 Hz
RF output poweradaptive, up to 100 mW, 10 mW fix (country-specific)
DisplayLCD
Weightapprox. 280 g incl. microphone head
Input sensitivityautomatic sensitivity adjustment
Battery Specification2 x AA size battery (1.5 V), Operating time: typ. 6 h
AccupackBA 10 (Li-Ion, 3.7 V), Operating time: typ. 11 h (optional accessory)
_x000D_

EM D1

_x000D_
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
RF sensitivity<-90 dBm
RF output powerBack channel 10mW/100mW (country-specific)
Audio outputMic/line level switch –12 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu
Low-cut filterat 120 Hz
Equalizer7-band graphic equalizer
Automatic gain control (AGC)compression/expansion with automatic make-up gain function
DisplayOLED
ConnectionXLR/¼" (6.3 mm) jack
Antenna connector2 x Rev-SMA
Network socketRJ45
Network protocolMedia Control Protocol, UDP IPv4 (DHCP, Manual)/IPv6
Power supply12 V DC hollow jack
Current consumption350 mA
Weightapprox. 824 g
_x000D_

SK D1

_x000D_
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
RF output poweradaptive up to 100mW, 10mW fix (country-specific)
Connection3.5 mm jack socket, lockable
Weightapprox. 85 g
Input sensitivityautomatic sensitivity adjustment
Battery Specification2 x AA size battery (1,5V), Operating time: typ. 6 h
AccupackBA 30 (Li-Ion, 3.7V), Operating time: typ. 11 h
MicrophoneFrequency response: 50 to 20,000 Hz
Max. input level: 2.2 V RMS
LineFrequency response: 20 to 20,000 Hz
Max. input level: 3.3 V RMS
Input impedance1 M?
_x000D_

What's in the box?

_x000D_
    _x000D_
  • EM-D1 rackmount receiver
    • _x000D_
  • SKM-D1 handheld transmitter
    • _x000D_
  • MZQ microphone clamp
    • _x000D_
  • NT-12 power supply
    • _x000D_
  • Transport Case
    • _x000D_
  • User Manual

Spesifikasjoner

Produsent Sennheiser
