Sennheiser SL TABLESTAND 153-S DW-4 B

Sennheiser SL TABLESTAND 153-S DW-4 B

kr 0,00 kr 0,00 (MVA ekskl.)

  • Produsent
Legg i handlekurven
Kontakt oss

Varenummer: 506628

Overview

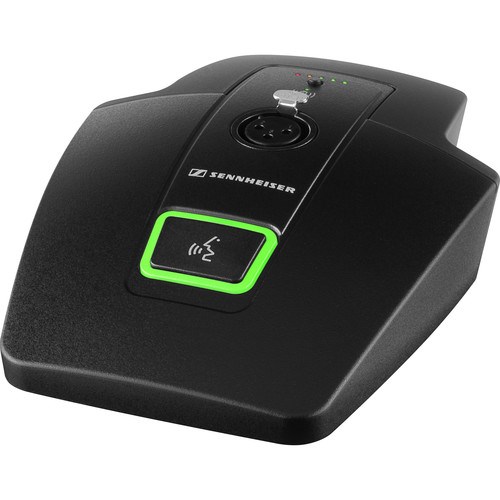

SL bordstativet 153-S DW er spesiallaget for tale. For å få til en fast og stabil forbindelse med svanehalsmikrofonen MEG 14-40-L-II B har den 5-polet XLR-kontakt. SL bordstativ 153-S DW er fullt ut trådløst og er derfor en perfekt løsning for ad hoc pressekonferanser eller paneldebatter på alle typer steder.

SL bordstativ 153-S DW benytter den mest vanlige trådløse ladestandarden Qi. Lading skjer trådløst eller via USB. Den trådløse ladestasjonen CHG Qi 2 for to mobile enheter kan leveres separat. SL bordstativ 153-S DW har en tydelig indikasjon av batterilevetid via dedikerte lysdioder for batteristatus.

SL bordstativ 153-S DW kan monitoreres og styres med Sennheiser Control Cockpit.


Features

    • Qi-lading – den mest vanlige trådløse ladestandarden
    • Tydelig indikasjon av batterilevetid via dedikerte lysdioder for batteristatus

  • -Kompatibel med Sennheiser MEG 14-40-L II svanehals for alle typer bruk med tale og foredrag

    • Kan fjernstyres med Sennheiser Control Cockpit

Hva er med i esken?

  • SL bordstativ 153-S DW
  • BA 40
  • USB-kabel
  • Hurtigguide
  • Sikkerhetsguide

Technical Data

  • Frekvensrespons
    75 to 20,000 Hz
  • Total harmonisk forvrengning (THD)
    typ. 0.1 %
  • Vekt
    approx. 650 g
    • Storage temperature
      Storage: -20 °C to 70 °C, (-4 °F to 158 °F)
    • Operating temperature
      Operation: 0 °C to 40 °C (14 °F to 131 °F)
    • Signal-til -støy-forhold
      > 90 dB(A)
    • RF utgangeffekt
      adaptive, up to 250 mW (country-specific)
    • Driftstid
      typ. 10 h with BA 40
    • Dynamic range
      > 120 dB(A)
    • Frekvensområder
      EU: 1,880 to 1,900 MHz
      USA: 1,920 to 1,930 MHz
      Brazil: 1,910 to 1,920 MHz
      Taiwan: 1,880 to 1,895 MHz
      Japan: 1,893 to 1,906 MHz
    • Utgangimpedans
      30 kO
    • Maks. inngangspenning
      1.7 V RMS
    • Sensitivitet
      < -90 dBm
    • Sampling rates
      24 bit/48 kHz
    • XLR Microphone Inputs
      XLR 5F










_x000D_

Technical Data

_x000D_

System

_x000D_
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
Frequency response20 to 20.000 Hz
Dynamic range> 128 dB (A)
THD, total harmonic distortiontyp. < 0,1 %
Audio sampling24 bit/48 kHz
Signal-to-noise ratio= 109 dB (A)
RF frequency range2,400 to 2,483.5 MHz
ModulationGFSK with back channel
Transmission methodTDMA, time diversity, frequency diversity, fast switching antenna diversity
Latency3.9 ms
Audio codecAPT-X Live
Operating temperature– 10 °C to +55 °C
Storage temperature– 20 °C to +70 °C (The temperature range is influenced by the battery characteristics)
_x000D_

SKM D1

_x000D_
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
Frequency response50 to 20,000 Hz
RF output poweradaptive, up to 100 mW, 10 mW fix (country-specific)
DisplayLCD
Weightapprox. 280 g incl. microphone head
Input sensitivityautomatic sensitivity adjustment
Battery Specification2 x AA size battery (1.5 V), Operating time: typ. 6 h
AccupackBA 10 (Li-Ion, 3.7 V), Operating time: typ. 11 h (optional accessory)
_x000D_

EM D1

_x000D_
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
RF sensitivity<-90 dBm
RF output powerBack channel 10mW/100mW (country-specific)
Audio outputMic/line level switch –12 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu
Low-cut filterat 120 Hz
Equalizer7-band graphic equalizer
Automatic gain control (AGC)compression/expansion with automatic make-up gain function
DisplayOLED
ConnectionXLR/¼" (6.3 mm) jack
Antenna connector2 x Rev-SMA
Network socketRJ45
Network protocolMedia Control Protocol, UDP IPv4 (DHCP, Manual)/IPv6
Power supply12 V DC hollow jack
Current consumption350 mA
Weightapprox. 824 g
_x000D_

SK D1

_x000D_
_x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_ _x000D_
RF output poweradaptive up to 100mW, 10mW fix (country-specific)
Connection3.5 mm jack socket, lockable
Weightapprox. 85 g
Input sensitivityautomatic sensitivity adjustment
Battery Specification2 x AA size battery (1,5V), Operating time: typ. 6 h
AccupackBA 30 (Li-Ion, 3.7V), Operating time: typ. 11 h
MicrophoneFrequency response: 50 to 20,000 Hz
Max. input level: 2.2 V RMS
LineFrequency response: 20 to 20,000 Hz
Max. input level: 3.3 V RMS
Input impedance1 M?
_x000D_

What's in the box?

_x000D_
    _x000D_
  • EM-D1 rackmount receiver
    • _x000D_
  • SKM-D1 handheld transmitter
    • _x000D_
  • MZQ microphone clamp
    • _x000D_
  • NT-12 power supply
    • _x000D_
  • Transport Case
    • _x000D_
  • User Manual

Spesifikasjoner

Produsent Sennheiser
