Varenummer:
700080

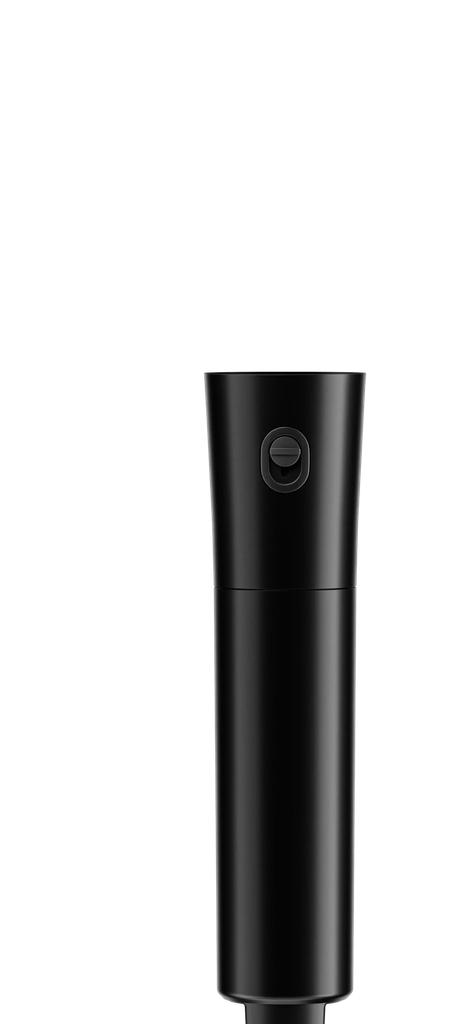

Digital UHF XLR plugg-på sender med +48V fantomkraft, microSD-kortspor og 3,5 mm lavalier-mikrofoninngang for bruk med Evolution Wireless Digital.
| SPECIFICATIONS | |||
| System | |||
| Audio link | Q1-6 | 470.2 - 526 MHz | |
| frequency ranges | R1-6 | 520 - 576 MHz | |
| R4-9 | 552 - 607.8 MHz | ||
| S1-7 | 606.2 - 662 MHz | ||
| S4-7 | 630 - 662 MHz | ||
| S7-10 | 662 - 693.8 MHz | ||
| U1/5 | 823.2 - 831.8 MHz & | ||
| 863.2 - 864.8 MHz | |||
| V3-4 | 925.2 - 937.3 MHz | ||
| Y1-3 | 1785.2 - 1799.8 MHz | ||
| Bluetooth® Low Energy | |||
| (BLE) frequency range | Bluetooth® Low Energy | ||
| (BLE) frequency range | |||
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) | ||
| @ 3 dBfs | |||
| Audio THD | = -60 dB for 1 kHz | ||
| @ -3 dBfs input level | |||
| Dynamic range | 134 dB | ||
| System latency | 1.9 ms | ||
| Operating temperature | -10 °C - +55 °C | ||
| (14 °F - 131 °F) | |||
| Relative humidity | 5 - 95 % (non-condensing) | ||
| EW-DP EK | |||
| Input voltage | ~ 1.8 - 4.35 V | ||
| Input current | Typ. < 250 mA / Max. < 400 | ||
| mA (BA 70) | |||
| Typ. < 400 mA / Max. < 750 | |||
Spesifikasjoner
| Produsent | Sennheiser |
