Varenummer:
ARU104MK2
Highlights
- 4 x Relay outputs (NO/NC)
- Terminal block connection
- DIN rail mounting enclosure
- Manual (contact) relay activation
- Digital communication bus (RS-485)

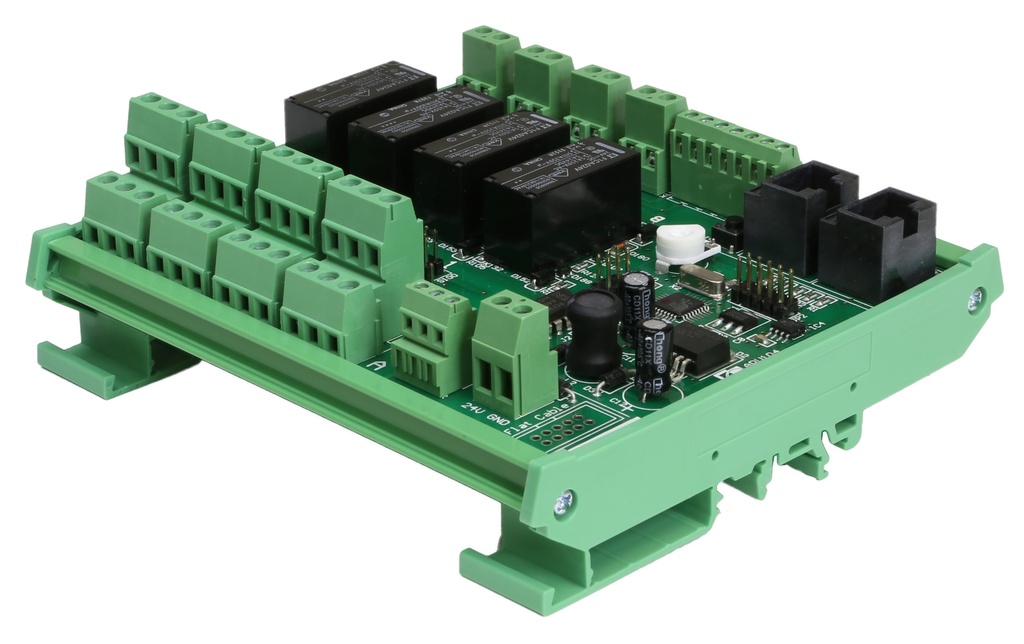

- The ARU104 is a specially designed flexible relay module, consisting of 4 relays. These can be used for switching between two different input signals. In the most common situations, a background music signal and a priority signal are applied. In combination with the APM paging consoles, it offers a simple and versatile paging solution that can be applied to all types of systems. It has full priority and can be switched between 100V and standard low impedance speaker signals as well as line level signals. There’s the possibility to connect multiple units in cascade which offers a wide range of possibilities for all kinds of applications. They are suitable to be mounted on a standard DIN rail, providing connection strips for the in- and output signals.
| System specifications | ||||
|---|---|---|---|---|
| Number of relays | 4 | |||
| Relay | Type | Two pole type | ||
| Inputs | Signal | 8 x 3-pin screw terminal for A & B input | ||
| Outputs | Signal | 8 x 2-pin screw terminal | ||
| Contacts | Normal open & normal closed | |||
| Control | Digital communication bus (RS-485) | |||
| Manual (contact) relay activation | ||||
| Indicators | Relay activation indicator LED’s | |||
| Power | Consumption | 6 W (max.) | ||
| Supply | 24 V DC | |||
| Connectors | 2 x RJ45 (input & linkthrough outputs) | |||
| Max. cable length | 300 m | |||
| Connection standard | TIA/EIA T568B | |||
| Product Features | ||||
|---|---|---|---|---|
| Dimensions | 112.8 x 50.4 x 132 mm (W x H x D) | |||
| Weight | 0.580 kg | |||
| Data protocol | RS-485 | |||
| Required cabling | UTP CAT5E | |||
| Colours | Green | |||
| Construction | Unbreakable plastic housing | |||
| Accessories | Optional | ARJ03P junction box | ||
| CP45ARJ RJ45 junction plate | ||||
| PSD24x external Power supply | ||||
Spesifikasjoner
| Produsent | Audac |
