Varenummer:
CASY003/B

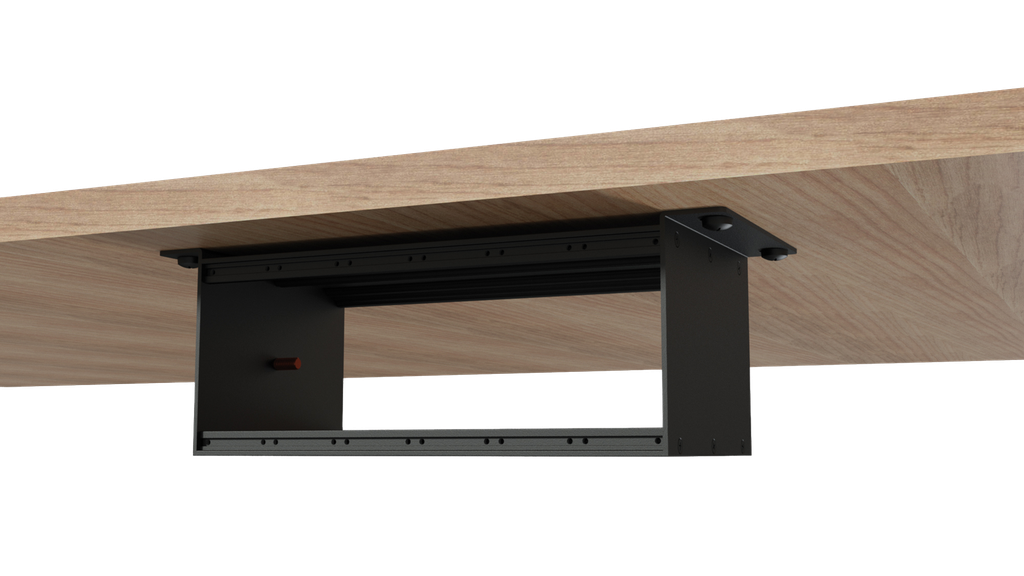

The CASY003 is a table / desk mountable chassis which can be fitted with 6 modules from the CASY range. The flexible and modular structure ensures a maximum versatility, allowing to adapt the system to each project specific requirements. Possibilities are ranging from audio, video and data interconnection to power distribution, control panels, power supplies and many more.
The aluminum top and bottom construction features pre-threaded hole inserts allowing module installation with a maximum of 6 units on both front and rear side. Modules can be fixed inside the unit using the included M3 screws, while the side ears are fitted with holes for fixation on/under any table or desk. The side ears are constructed out of cold-rolled steel with internal pillars for chassis grounding.
The overall construction is finished in a black (RAL9004) structured and scratch resistant powder coating.
Spesifikasjoner
| Produsent | Audac |
