Varenummer:
CIRA506/W

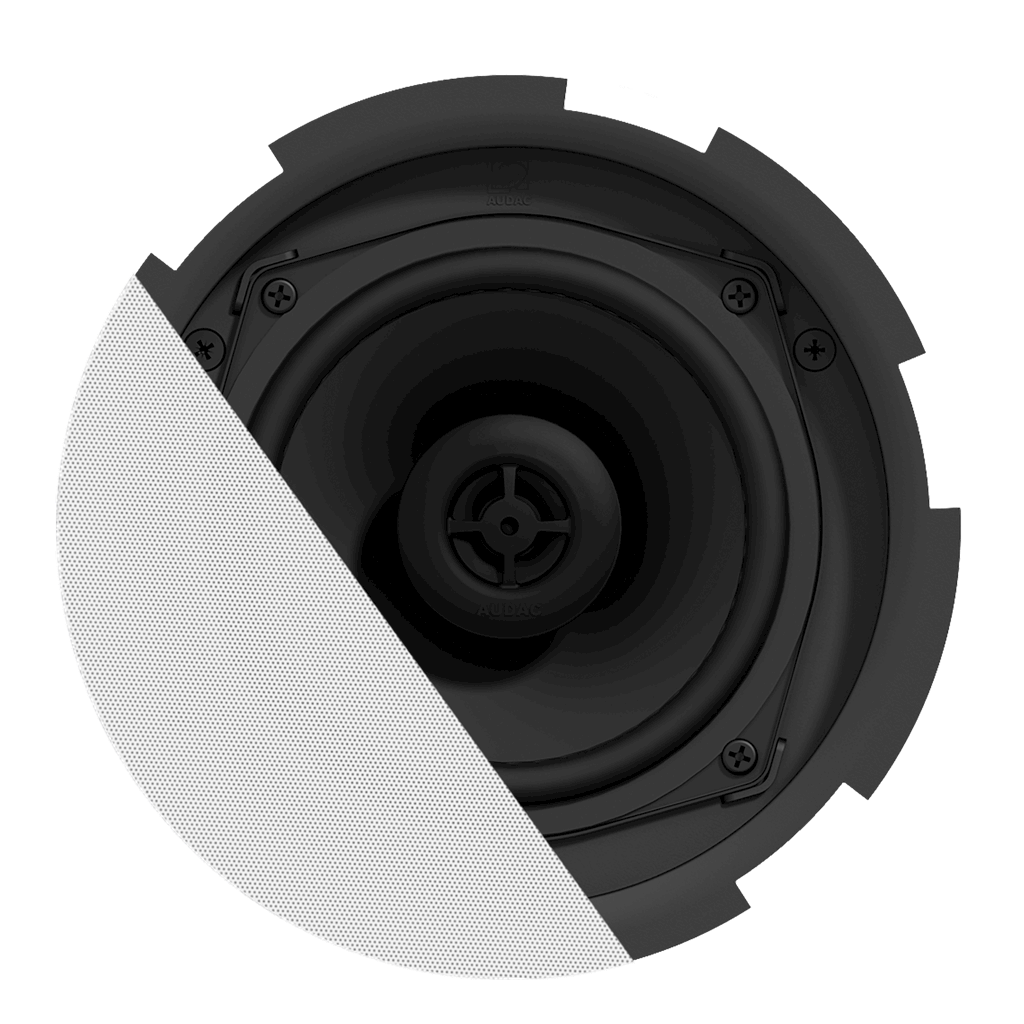

Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.
The CIRA5 features a 5 ¼” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 6W, 3W, 1.5W and an 8 Ohm or 16 Ohm bypass connection.
| System specifications | _x000D_||||
|---|---|---|---|---|
| Max. Power | _x000D_60 W | _x000D_|||
| RMS Power | _x000D_30 W | _x000D_|||
| Sound Pressure (Max. W/1m) | _x000D_@ 100 V | _x000D_102 dB | _x000D_||
| Sensitivity (1W/1m) | _x000D_87 dB | _x000D_|||
| Frequency | _x000D_Response (± 3 dB) | _x000D_60 Hz - 20 kHz | _x000D_||
| Speaker type | _x000D_2-way coaxial | _x000D_|||
| Impedance | _x000D_8 ? (CIRA506 & CIRA524) | _x000D_|||
| _x000D_ | _x000D_ | |||
| Frequency | _x000D_Range (-10 dB) | _x000D_45 Hz - 20 kHz | _x000D_||
| Dispersion | _x000D_Conical | _x000D_145° | _x000D_||
| Connectors | _x000D_Multi-tap Fast-con™ connections | _x000D_|||
| Drivers | _x000D_LF | _x000D_5 ¼" Woofer | _x000D_||
| _x000D_ | HF | _x000D_1” | _x000D_||
| Line Transformer Tappings | _x000D_1 | _x000D_6 W - 1667 ? (CIRA506) | _x000D_||
| _x000D_ | _x000D_ | _x000D_ | ||
| _x000D_ | 2 | _x000D_3 W - 3333 ? (CIRA506) | _x000D_||
| _x000D_ | _x000D_ | _x000D_ | ||
| _x000D_ | 3 | _x000D_1.5 W - 6667 ? (CIRA506) | _x000D_||
| _x000D_ | _x000D_ | _x000D_ | ||
| Product Features | _x000D_||||
|---|---|---|---|---|
| Cut-out measurement | _x000D_170 mm (Ø) | _x000D_|||
| Dimensions | _x000D_193 x 83 mm (Ø x D) | _x000D_|||
| Weight | _x000D_1.10 kg (CIRA506) | _x000D_|||
| _x000D_ | 1.15 kg (CIRA524) | _x000D_|||
| _x000D_ | 1.05 kg (CIRA530D) | _x000D_|||
| Construction | _x000D_ABS | _x000D_|||
| Front finish | _x000D_TwistFix™Borderless finely perforated steel grill | _x000D_|||
| Mounting | _x000D_Quick-Fit™ mounting system | _x000D_|||
| Colours | _x000D_White (RAL9003) (CIRA506/W, CIRA524/W & CIRA530D/W) | _x000D_|||
| Built-in depth | _x000D_83 mm (CIRA524) | _x000D_|||
| _x000D_ | 75 mm (CIRA506 & CIRA530D) | _x000D_|||
| Dimensions | _x000D_193 mm (Ø) | _x000D_|||
| SYSTEM SPECIFICATIONS | ||||
|---|---|---|---|---|
| Max. Power | 60 W | |||
| RMS Power | 30 W | |||
| Sensitivity (1W/1m) | 87 dB | |||
| Speaker type | 2-way coaxial | |||
| Impedance | 16 ? (CIRA530D) | |||
| 8 ? (CIRA506 & CIRA524) | ||||
| Connectors | Multi-tap Fast-con™ connections | |||
| Sound Pressure (Max. W/1m) | @ 100 V | 102 dB | ||
| Frequency | Response (± 3 dB) | 60 Hz - 20 kHz | ||
| Range (-10 dB) | 45 Hz - 20 kHz | |||
| Dispersion | Conical | 145° | ||
| Drivers | LF | 5 ¼" Woofer | ||
| HF | 1” | |||
| Line Transformer Tappings | 1 | 6 W - 1667 ? (CIRA506) | ||
| 24 W - 417 ? (CIRA524) | ||||
| 2 | 3 W - 3333 ? (CIRA506) | |||
| 12 W - 833 ? (CIRA524) | ||||
| 3 | 1.5 W - 6667 ? (CIRA506) | |||
| 6 W - 1667 ? (CIRA524) | ||||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Cut-out measurement | 170 mm (Ø) | |||
| Dimensions | 193 x 83 mm (Ø x D) | |||
| Weight | 1.10 kg (CIRA506) | |||
| 1.15 kg (CIRA524) | ||||
| 1.05 kg (CIRA530D) | ||||
| Construction | ABS | |||
| Front finish | Twist-Fix™ Borderless finely perforated steel grill | |||
| Mounting | Quick-Fit™ mounting system | |||
| Colours | White (RAL9003) (CIRA506/W, CIRA524/W & CIRA530D/W) | |||
| Built-in depth | 83 mm (CIRA524) | |||
| 75 mm (CIRA506 & CIRA530D) | ||||
| Dimensions | 193 mm (Ø) | |||
Spesifikasjoner
| Produsent | Audac |
