Varenummer:
CMX222/1

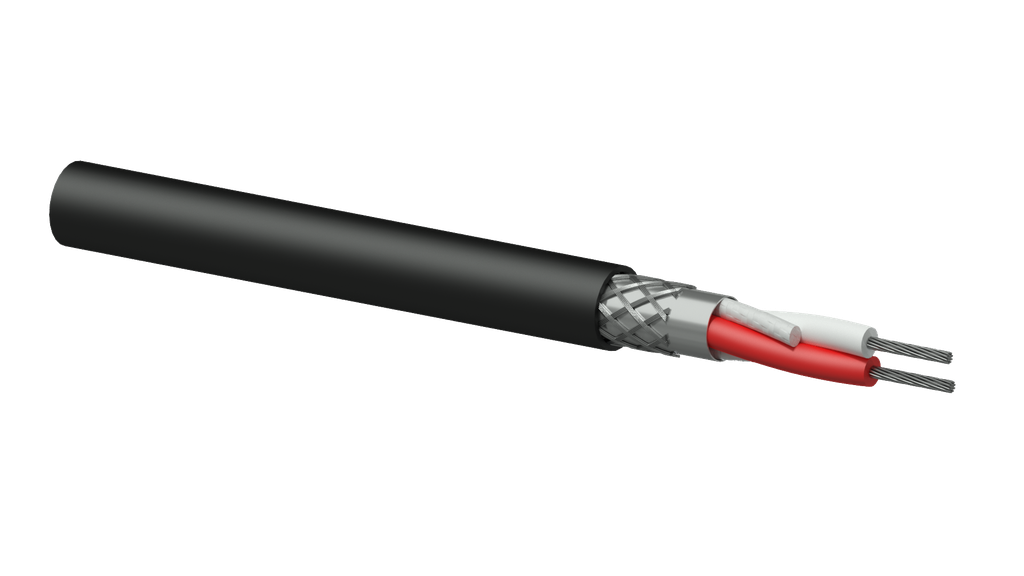

The CMX222 is an 110 Ohm DMX-AES Digital signal cable featuring a Flamoflex™ outer jacket compliant to the IEC 60332-1 standard regarding fire and flammability resistance in public installations. The Flamoflex™ material is specifically designed with installers convenience in mind, offering a smooth and durable outer jacket for easy installation and pulling.
_x000D_Its 22 AWG (0.34mm²) tinned copper conductor section is surrounded by a double shielding consisting of an aluminum foil and high coverage tinned copper braiding. This ensures an optimal signal transmission with high immunity to noise and interference caused by external devices.
| Type of cable | _x000D_110 O DMX-AES |
| Inner conductor | _x000D_TC 17 x 0.16 mm |
| Inner conductor section | _x000D_0.342 mm² |
| Insulation | _x000D_Foamed PE Ø 2.0 mm |
| Insulation color | _x000D_Red / White |
| Number of conductors | _x000D_2 |
| Shielding | _x000D_Al-Mylar + TC 16 x 8 x 0,.1 mm - braiding |
| Outer jacket | _x000D_NHFR |
| Outer Jacket Color | _x000D_Black |
| Outer jacket dimensions | _x000D_ø 5.5 mm |
| Characteristic impedance | _x000D_110 Ohm |
| Lead resistance - 100 m | _x000D_5,94 Ohm |
| Dielectric strength | _x000D_1.5 kV - 1 min |
| Impedance | _x000D_110 Ohm |
| American Wire Gauge | _x000D_22 AWG |
| Produsent | Procab |
