Varenummer:
GCF3W
GCF3

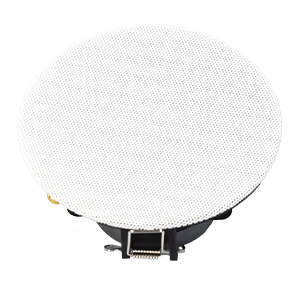

3" Ceiling Speaker
GCF3
is a tiny but performing 3" 2-way full range passive speaker for
in-ceiling or in-wall installation. Thanks to its circular frameless
grille design and its extra small format, GCF3 is a very practical and
discrete solution for architectural installations that require
multi-point sound distribution.
The spring clamps and the
magnetic grille allow fast and tool-free installation and its 16 ohm
impedance allows multiple speaker connection to KGEAR amplifiers (GA201,
GA41/41L or GA43/43L) without any transformer, preserving audio
quality.
To obtain the best performance and low frequency
extension, combine GCF3 with a KGEAR subwoofer (GS6, GCF8S, GWF8S).
Available in black or white colour, the frameless magnetic grille can be
painted to match any environment.
Tech specs
GENERAL
Rated Power (@8O): 40W
Peak power (@8O): 80W
Nominal Power (@100V): 2/4/8/16W taps (GCF6T - GCF6TW)
Nominal Power (@70V): 1/2/4/8W taps (GCF6T - GCF6TW)
Impedance: 8O
Frequency Range: 70Hz – 20KHz (-3dB average)
60Hz – 20KHz (-10dB average)
Maximum SPL(1): 106dB (peak)
Coverage: 120° conical
TRANSDUCERS
5.25" coax ferrite magnet woofer
0.75" titanium dome tweeter
AUDIO I/O
Gold plated push terminals
PHYSICAL OVERVIEW
Ø Outer: 196 mm (7.7 in)
Ø Inner 179 mm (7 in)
Depth: 75 mm (3 in)
Weight: 1.08 kg (2.4 lb)
Material: ABS
Colors: White (GCF5W - GCF5TW)
Black (GCF5 - GCF5T)
Spesifikasjoner
| Produsent | KGEAR |
