Varenummer:
GCF8W

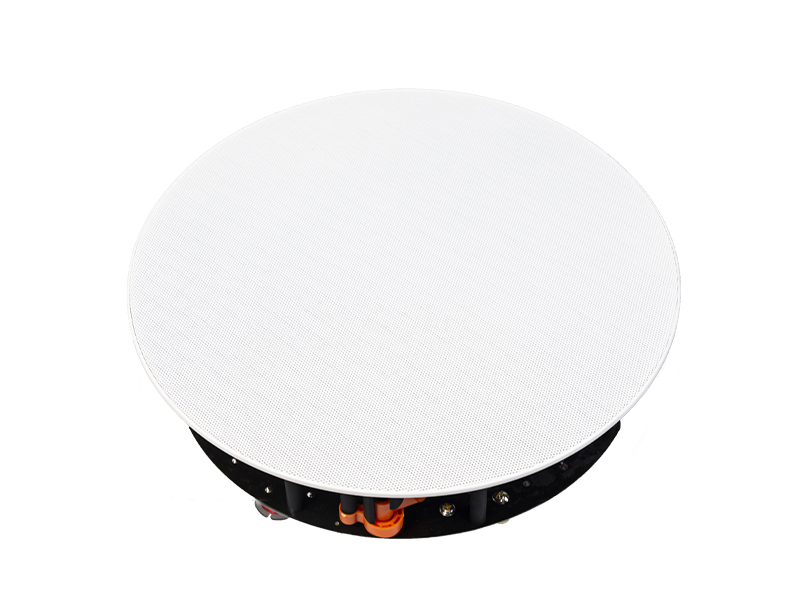

8” full-range two-way passive speaker designed to be installed in the ceiling or in the wall
Suitable for applications in permanent installations for music and speech in conference rooms, hotels, bars, restaurants and retail shops.
Nice performance/size ratio featuring easy and fast setup possibility. GA201 (up to 4 pcs/ch) suggested amplifiers.
Suitable for applications in permanent installations for music and speech in conference rooms, hotels, bars, restaurants and retail shops.
Nice performance/size ratio featuring easy and fast setup possibility. GA201 (up to 4 pcs/ch) suggested amplifiers.
Tech specs
GENERAL
Rated Power (@8O): 80W
Peak power (@8O): 160W
Nominal Power (@100V): 4/8/16/32W taps (GCF8T - GCF8TW)
Nominal Power (@70V): 2/4/8/16W taps (GCF8T - GCF8TW)
Impedance: 8O
Frequency Range: 50Hz – 20KHz (-3dB average)
Maximum SPL(1): 112dB (peak)
Continuos SPL: 100dB
Coverage: 130° conical
TRANSDUCERS
8" coax ferrite magnet woofer
1" titanium dome tweeter
AUDIO I/O
Gold plated push terminals
PHYSICAL OVERVIEW
Ø Outer: 277 mm (10.9 in)
Ø Inner 258 mm (10.2 in)
Depth: 105 mm (4.1 in)
Weight: 2.04 kg (4.5 lb)
Material: ABS
Colors: White (GCF8W - GCF8TW)
Black (GCF8 - GCF8T)
Spesifikasjoner
| Produsent | KGEAR |
