Varenummer:
GP12A
GP12A

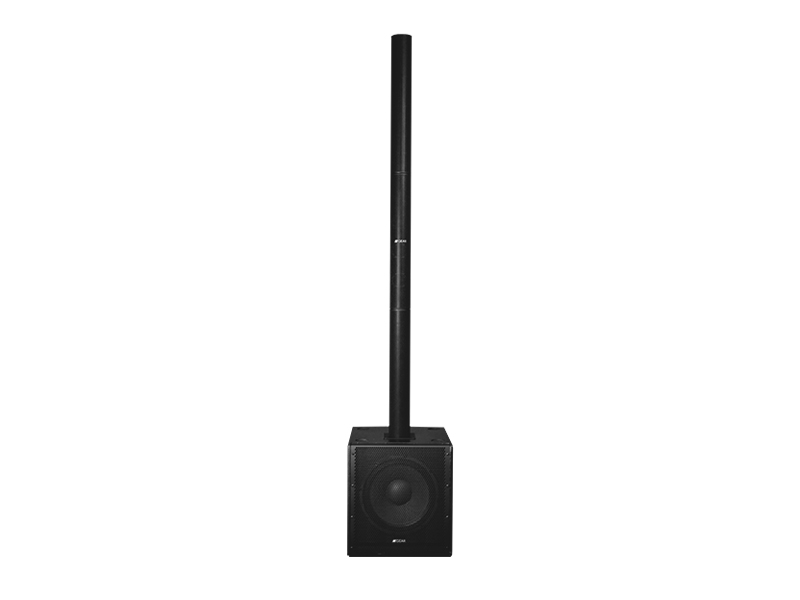

12" Subwoofer + 16x2" Modular Column System (Active)
GP12
is a portable high performance Sub + Column system that features a 12”
subwoofer with a ferrite magnet and a modular column with 16x2” drivers
with neodymium magnets.
The active version has a 4x750W RMS
Class-D amplifier built-in and is capable of driving up to 3 full GP12
passive systems at the same time. The column divers feature an
alternating angle pattern that increases the dispersion up to 140° on
the horizontal plane to provide a very immersive sound field while
assuring a long throw and a narrow vertical dispersion. GP12 comes with 4
factory presets to adapt to any needs.
Thanks to the quick
setup and its compact form factor, GP12A/GP12 is an incredibly effective
solution for small and medium temporary and fixed applications where
performance to size ratio is key, such as events of any kind, small
stages, trade shows, broadcast and corporate.
Tech specs
GENERAL
Power Handling: 600W subwoofer + 500W satellite
Impedance: 8O subwoofer + 16O each segment
Frequency Range: 37Hz – 20KHz (-6dB average)
Maximum SPL(1): 122dB peak
Coverage: V.20° - H.140°
TRANSDUCERS
Subwoofer: 12” ferrite magnet
Mid High Frequency: 2 modules with 8x2” neodymium magnet
AUDIO I/O
Analog balanced I: 2 x Combo jack-XLR female line
Analog power O: 1 x Speakon to drive a GP12 Passive System in a stereo configuration
AUDIO CONTROLS
Volume potentiometer | RJ45 connector | DSP can be remotely controlled via an Ethernet connection through Powersoft ArmoniaPlus Software
AMPLIFIER
Type: 4-channel Class-D audio amplifier
Power: 4x 750W @4ohm
AC input: 100-240V AC @50-60Hz (Powercon connector)
Max power consumption: 500W Rated Load (1/8 Max Power)
Protections:
Thermal Protections (Power limiting - Thermal Shutdown),
Short-circuit/overload output protections, stationary high frequency
protection, peak limiter, RMS limiter, frequency dependent RMS limiter,
Clip limiter.
PHYSICAL OVERVIEW
SUBWOOFER
Width: 405mm (15.94in)
Height: 445mm (17.51in)
Depth: 430mm (16.92in)
Weight: 20kg (44.1lbs)
Material: plywood
Rating: IP41
SATELLITE
Width: 85mm (3.34in)
Height: 1610mm (63.38in)
Depth: 105mm (4.13in)
Weight: 4.5kg (9.92lbs)
Material: ABS
Rating: IP54
ACCESSORIES
GP18-BASE: Floor stand for GP18/GP18A GP12/12A columns (optional)
