Varenummer:
KA104LIVE

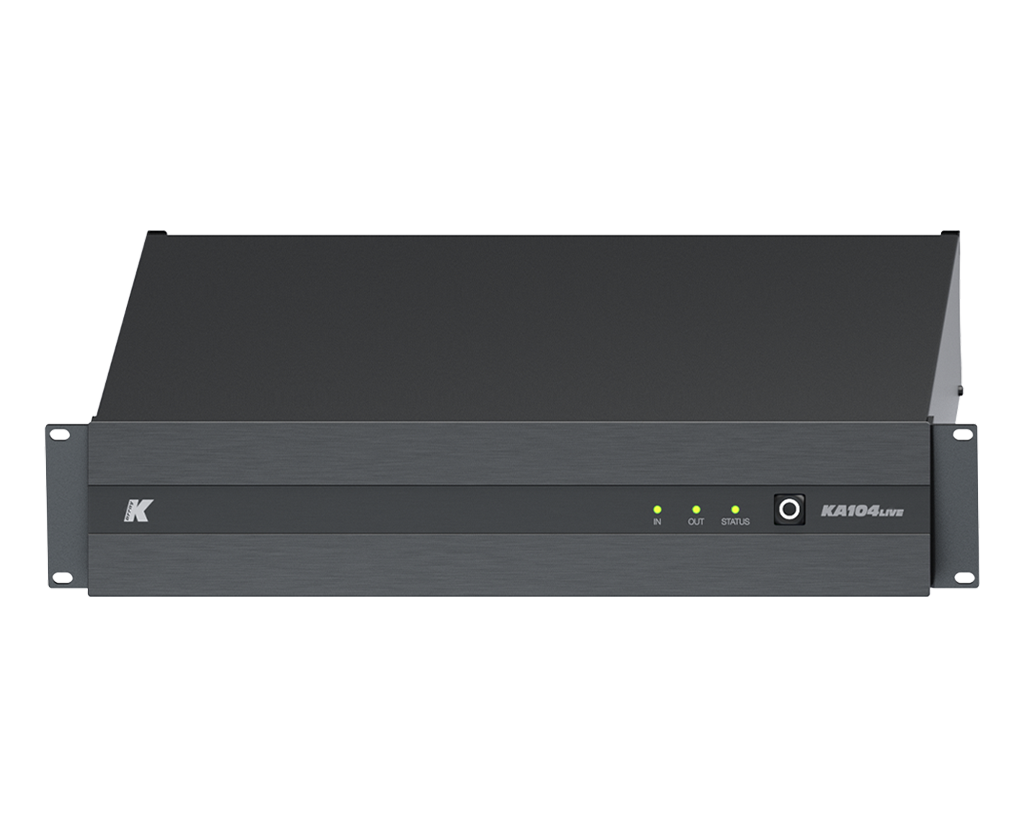

The Kommander-KA104LIVE is the ultimate amplifier platform of K-array electronics, boasting a power output of 4x2500W@4O and the well known DSP functions of the Kommander-KA104. Tailored specifically for the demands of live entertainment scenarios, it features SpeakON and CA-COM connections, ensuring pristine sound quality and complete control over connected line array elements or systems.
Kommander-KA104LIVE not
only is designed for live scenarios but also offers portability. It
Seamlessly integrates into portable setups for live applications,
providing all the processing functionalities of a complete system while
offering the convenience and compactness of a portable audio solution.
The dedicated K-array Connect mobile app provides a user-friendly interface for remote control of the DSP main parameters and easy configuration of the signal routing.
K-framework3
is the managing and control software dedicated to professionals and
operators looking for a powerful tool for loudspeakers system design and
tuning of a large number of units over a wired LAN.
| General |
| Type 4ch switching mode, Class D Amplifier |
| Output Power 1 4x 2500 W @ 4 Ohm |
| Impedance minimum 4 Ohm |
| Frequency Response 1 20 Hz – 20 kHz (±1 dB) |
| Connectors |
| Input: |
| 4x XLR-F balanced input |
| 4x XLR-M balanced LINK output |
| Output: |
| 2x Speakon NL4/1xCA-COM multichannel |
| Remote connectivity: |
| 1x Ethernet RJ45 |
| 4x USB-A |
| Wi-Fi IEEE 802.11 b/g/n |
| Built-in DSP Grouping, Input EQ, Output EQ, Signal Routing, |
| Level adjustment, Dynamic Limiters, Delay |
| Remote control |
| Wi-Fi dedicated K-array Connect mobile app |
| Ethernet wired K-framework3 multiplatform |
| design and tuning software |
| MAINS Operating Range 100-240V ~ AC, 50-60 Hz with PFC |
| via powerCON TRUE connector with power link |
| Power Consumption 600 W @ 4 O load, Pink noise, 1/8 rated power |
| Protections |
| Thermal protection, output short circuit, RMS |
| output current protection, high frequency |
| protection, power limiter, clip limiter. |
Spesifikasjoner
| Produsent | K-Array |
