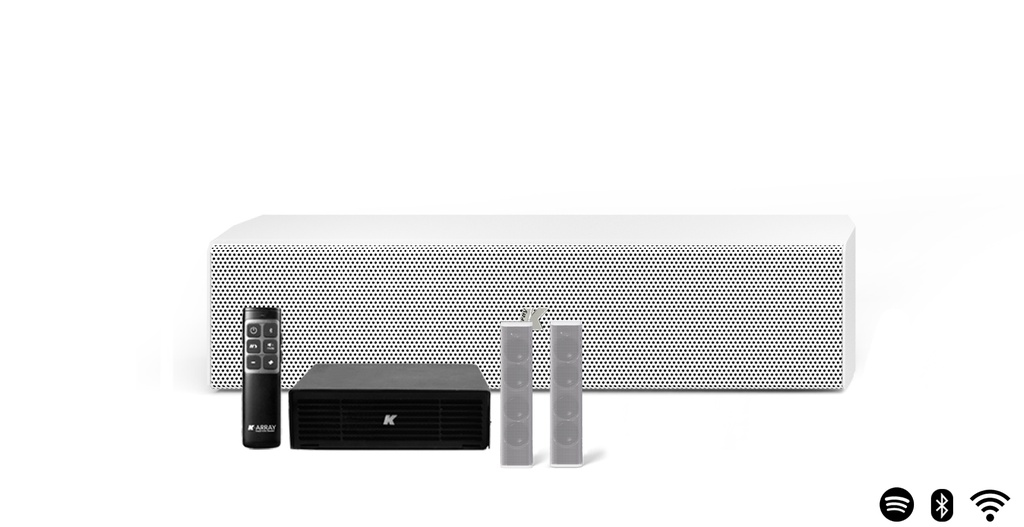

K-Array Azimut Professional sound system

Specifications

General

• Power Handling Lyzard-KZ14 (mid-high): 15W, Rumble-KU44-2 (subwoofer): 100W
• Impedance Lyzard-KZ14 (mid-high): 16O, Rumble-KU44-2 (subwoofer): 2O
• Frequency range (1) 50 Hz – 18 kHz (-6dB)
• Maximum SPL Lyzard-KZ14 (mid-high): 98 dB SPL (peak) (2)
• . Rumble-KU44-2 (subwoofer): 116 dB SPL (peak) (3)
• Coverage Lyzard-KZ14 (mid-high): V. 140° | H. 40°
• . Rumble-KU44-2 (subwoofer): omni

Transducers

• Subwoofer 2 x 4” ferrite magnet with 1” voice coil + 2 x 4” passive radiator
• Mid-High frequency 4 x 0.5” neodymium magnet with 0.5” voice coil

Audio Input

• Analog Balanced 2 x 3-pin euroblock (Phoenix MC 1,5/ 3-ST-3,81)
• Analog Unbalanced 3.5mm Jack Stereo
• Optic Toslink Connector
• USB 4 x USB 2.0
• Bluetooth 4.1 Bluetooth Low Energy

Remote

• Remote Controller wired or wireless
• Hardware Control 4 x GPIO ports (Phoenix MC 1,5/ 5-ST-3,81 BK)
• Network 10-100 Mbps Ethernet (RJ45), Wirelss LAN 802.11n

DSP Processing

• Sample Rate 96 kHz
• Bit Depth 32 bit
• Processing loudspeaker preset, EQ, signal routing, local streaming

Amplifier

• Type 4-channel Class-D audio amplifier
• Power 4 x 50W @ 4O
• Protection Output Short Protection, DC Offset, Overtemperature, Undervoltage and Overvoltage, Open Ground and Power Tolerant
• Power Dedicated AC/DC power adapter 100-240V ~ AC, 50-60 Hz input / 24 V, 4 A DC output

Physical Overview

• Dimensions Lyzard-KZ14: 22 x 100 x 11 mm (0.9 x 3.9 x 0.4 in)
• . Rumble-KU44-2: 500 x 116 x 100 mm (19.7 x 4.6 x 4.0 in)
• . Kommander-KA02: 144 x 144 x 46 mm (5.7 x 5.7 x 1.8 in)
• Weight Lyzard-KZ14: 0,059 kg (0.130 lb)
• . Rumble-KU44-2: 5,9 kg (13.0 lb)
• . Kommander-KA02: 0.5 kg (1.10 lb)

• Notes for data:
  (1) With dedicated preset.
  (2) Maximum SPL is calculated using crest factor 4 (12dB) measured at 8 m then scaled at 1 m
  (3) Maximum SPL is calculated using crest factor 4 (12dB) measured at 1 m

  New materials and designs are introduced into existing products without previous notice. Present systems may differ in some respects from those presented in this catalog.
