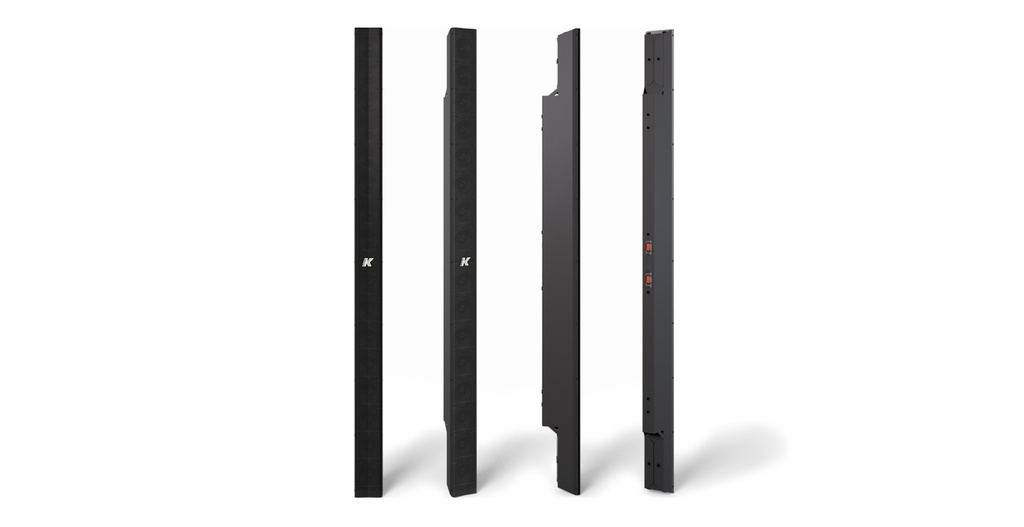

The K-array Kobra-KK102 I is a passive speaker system comprised of sixteen 2” neodymium magnet transducers housed in an elegant and sturdy stainless steel chassis. The vertical dispersion pattern can be switched for wide or narrow coverage, allowing for a great variety of applications. The sixteen closely spaced cone drivers provide true line array characteristics
For easier use and integration with other speakers or amplifiers, the KK102 I allows the user to select two different values of impedance (8O – 32O). At 32O as many as 8 KK102 I speakers can be powered off a single amplifier channel at 4O. The KK102 I is able to reproduce the whole vocal frequency range with high intelligibility, starting from 150 Hz. Integrating one of K-array powered subwoofers (KMT12, KMT18, KMT21, KMT218), configured with specific presets for the KK102 I assures excellent coverage of the entire musical frequency range. The K-array KA amplifier series have pre-sets optimized for KK102 I use. All KK102 I components are designed by the K-array R&D department and custom-made under the K-array quality control system.
Technical Specifications
|
General |
|
|
Type |
Line array |
|
Transducers |
16 x 2" neodymium magnet woofers |
|
Frequency Response 1 |
150 Hz – 18 kHz (-6 dB) |
|
Max SPL 2 |
126 dB (peak) |
|
Rated Power |
400 W |
|
Coverage |
V. 7° - 35° | H. 120° |
|
Connectors |
SpeakOn NL4: 1+ 1- (signal); 2+ 2- (through) |
|
Nominal Impedance |
8 W / 32W selectable |
|
Handling & Finishes |
|
|
Dimensions (WxHxD) |
59 x 1000 x 81 mm (2.3 x 39.4 x 3.2 in) |
|
Weight |
4,8 kg (10.6 lb) |
|
Material |
Stainless Steel |
|
Colors |
Black, White, Custom RAL |
|
Finishes |
Gold, Polished, Brushed |
|
Regulations |
|
|
IP Rating |
IP64 3 |
|
EN54-24 |
EN 54-24:2008 compliant 4 |
|
Accessories |
|
|
Recommended Amplifier |
Kommander-KA24, Kommander-KA84, |
Spesifikasjoner
| Produsent | K-Array |
