K-Array KR202 I

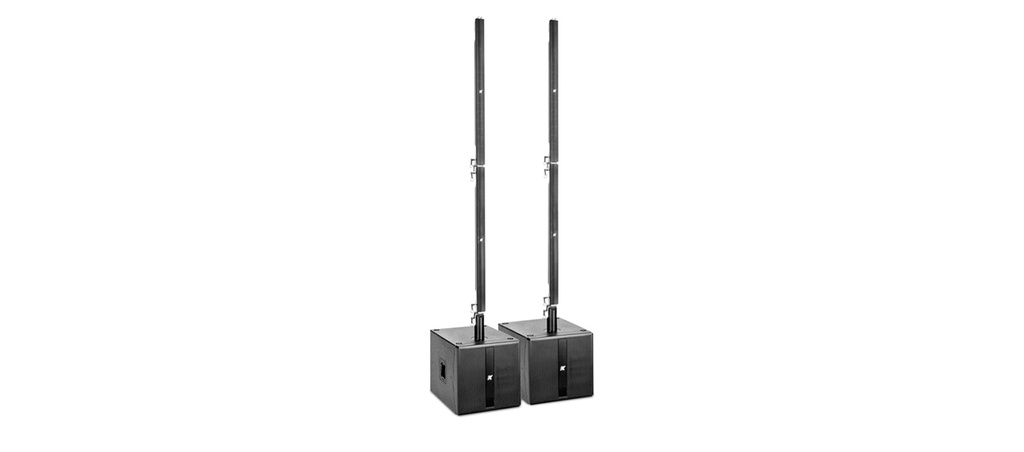

The KR systems are integrated, self-powered speaker systems, featuring mid-hi line array elements matched to powered subwoofers. All systems feature two channels of Class D amplification housed in the subwoofer. The rear panel provides input for 2 balanced line signals and a digital signal in AES/EBU protocol. And with the K-dante accessory, the system can be used in a Dante network. An integrated touch screen provides intuitive managing and editing of powerful DSP controlling: Input and output levels, internally generated test signal, In/Out routing, subwoofer delay up to 12 ms, Speakon output to the mid-hi element with delay up to 12 ms, and overall system delay up to 330 ms. All DSP functions, including EQ can be controlled with remote managing software via USB or RS485, again, conveniently on a standard XLR. The unique four-corner port configuration gives symmetrical back loading to the sub speaker for extended bass response with very low distortion. This also gives incredible structural strength to the cabinet despite its light weight. Pocket handles in the sub and an M20 thread mount position for attaching mid-high speakers, with a variety of mounting and rigging hardware options make the systems very versatile in almost any application and in every type of venue. The KR202 features a pair of KMT18 (18”) subs each with 2 channels of 1,000 W matched to two Kobra arrays. The KR202 system is designed by the K-array R&D department and custom made under the K-array quality control system
