Varenummer:
KTR24

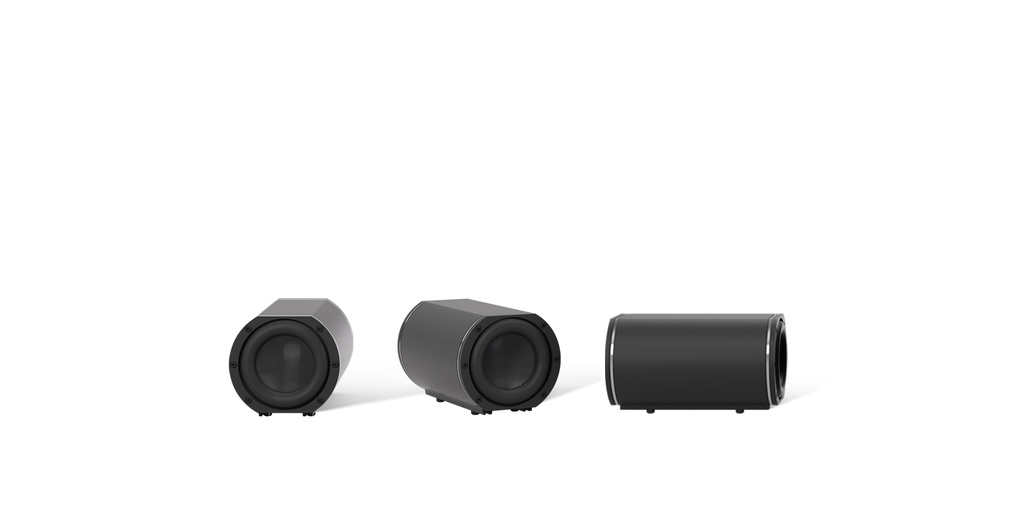

The Truffle-KTR24 is the smallest model in the compact line of Truffle subwoofer. The source subwoofer has a frequency range of 45 Hz to 150 Hz. Easy to conceal, the Truffle-KTR24 is a 8"-long cylindrical speaker box equipped with one 4" active driver on one end and one 4" passive speaker on the other, making the box a perfect omnidirectional low-end source.
This subwoofer provides the low-end frequencies for the Azimut-KAMUT2L1 audio system.
Specifications
General
- Type Passive subwoofer
- Transudcers 4" woofer + passive radiator
- Frequency Response (1) 45 Hz – 150 Hz (-6 dB)
- Maximum SPL (2) 112 dB (peak)
- Rated Power 60 W
- Coverage Omni
- Connectors 2PIN euroblock connector (included)
- Nominal Impedance 4 O
Handling and Finishes
- Dimensions (W x H x D) 122 x 117 x 199 mm (4.8 x 4.6 x 7.8 in)
- Weight 1,5 kg (3.31 lb)
- Material Aluminum
- Color Black
- Finishes Powder Matte
Regulations
- IP Rating IP64
- Notes for data:
(1) With dedicated preset
(2) Maximum SPL is calculated using crest factor 4 (12dB) measured at 1 m.Passive loudspeakers requires dedicated preset loaded on board of K-array amplifiers.
New materials and design are introduced into existing products without previous notice.
Spesifikasjoner
| Produsent | K-Array |
