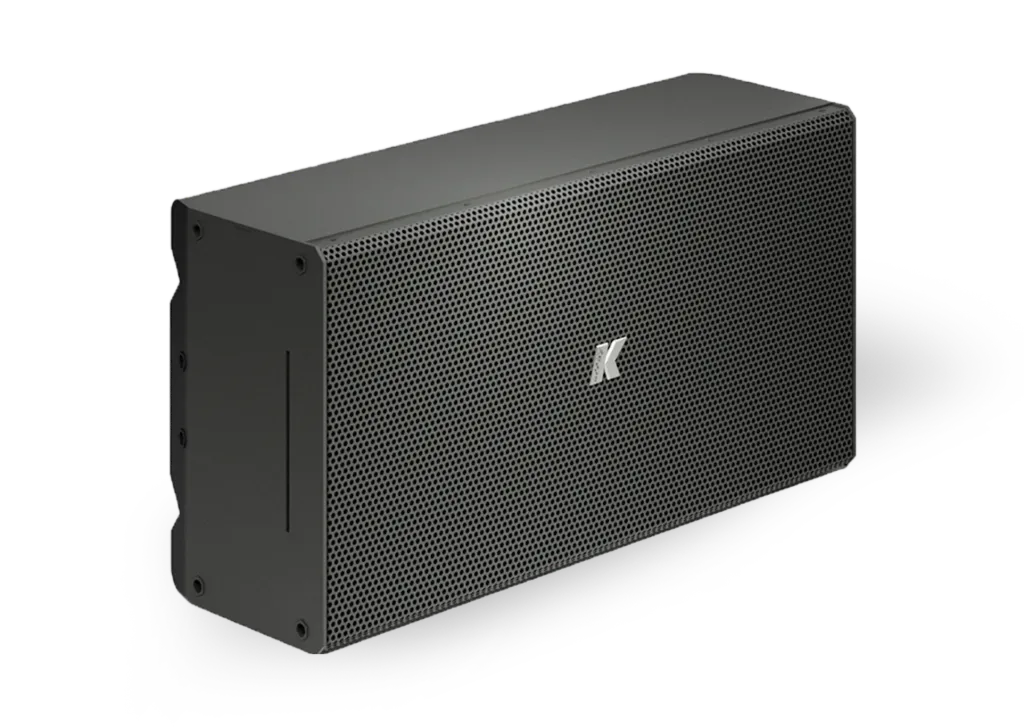

K-Array KU26X (Custom Color)

Specifications

General

• Type Passive subwoofer
• Transducers 6" neodymium magnet woofers / 6" passive radiator
• Frequency Response (1) 45 Hz – 150 Hz (-6 dB)
• Maximum SPL (2) 121 dB (peak)
• Rated Power 160 W
• Coverage Omni
• Connectors 4PIN euroblock connector (included)
• Nominal Impedance 8 O / 32 O selectable

Handling and Finishes

• Dimensions (W x H x D) 350 x 180 x 118 mm (13.8 x 7.1 x 4.6 in) (3)
• Weight 5,9 kg (13.0 lb)
• Material Stainless Steel
• Color Black, White, Custom RAL
• Finishes Gold, Polished, Brushed

Regulations

• IP Rating IP64 (4)

• Notes for data:
  (1) With dedicated preset
  (2) Maximum SPL is calculated using crest factor 4 (12dB) measured at 1 m.
  (3) Removable rubber feet not included.
  (4) More complete water protection with K-KUIP accessory.

  Passive loudspeakers require dedicated presets loaded on K-array amplifiers.
  New materials and designs are introduced into existing products without previous notice.
