Varenummer:
KU44

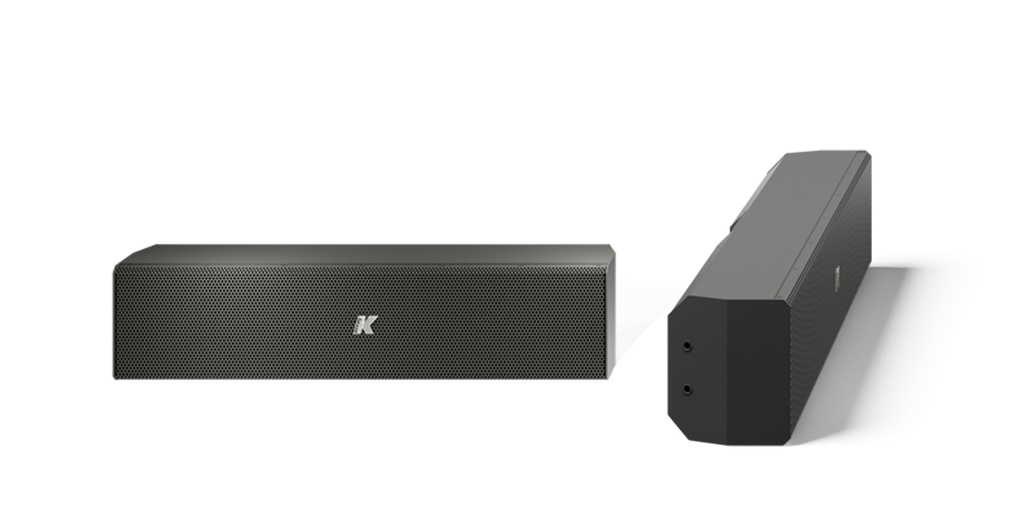

The Rumble-KU44 line array element is an extremely compact, array-able subwoofer comprised of two 4” neodymium magnet woofers and two 4” passive radiators engineered for maximum linear excursion and minimum residual noise.
For easier use and integration with all Kommander amplifiers, the KU44 allows the user to choose between two different values of impedance (8/32 ?). At 32 O, as many as eight KU44 units can be powered off a single Kommander amplifier channel.
Specifications
General
- Type Passive subwoofer
- Transducers 2 x 4" neodymium magnet woofers / 2 x 4" passive radiators
- Frequency Response (1) 50 Hz – 150 Hz (-6 dB)
- Maximum SPL (2) 116 dB (peak)
- Rated Power 120 W
- Coverage Omni
- Connectors 4PIN euroblock connector (included)
- Nominal Impedance 8 O / 32 O selectable
Handling and Finishes
- Dimensions (W x H x D) 500 x 116 x 100 mm (19.7 x 4.6 x 4.0 in) (3)
- Weight 5,9 kg (13.0 lb)
- Material Stainless Steel
- Color Black, White, Custom RAL
- Finishes Gold, Polished, Brushed
Regulations
- IP Rating IP64 (4)
- Notes for data:
(1) With dedicated preset
(2) Maximum SPL is calculated using crest factor 4 (12dB) measured at 1 m.
(3) Removable rubber feet not included.
(4) More complete water protection with K-KUIP4 accessory.Passive loudspeakers require dedicated preset loaded on K-array amplifiers.
New materials and designs are introduced into existing products without previous notice.
