Varenummer:
KV25

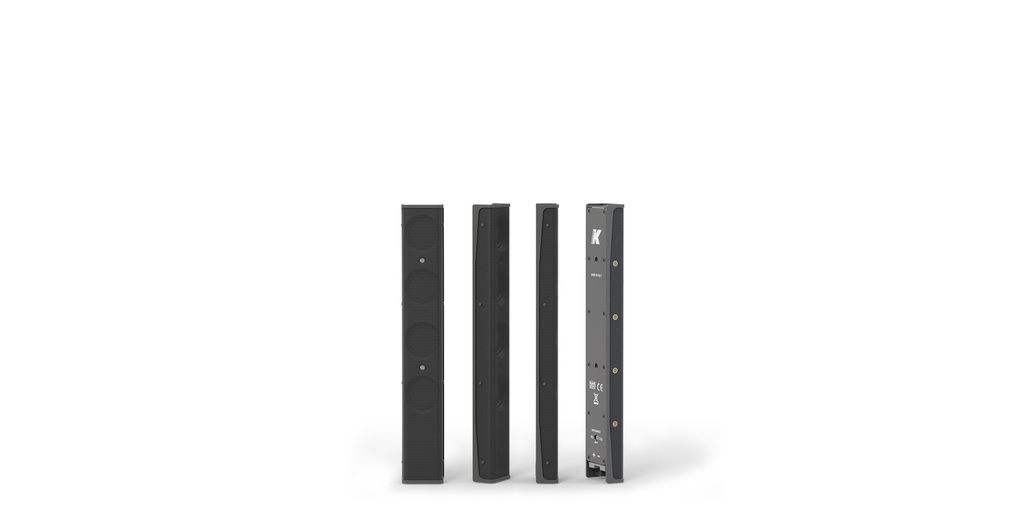

The Vyper-KV25 is a 26-cm-long passive line array comprised of four 1” neodymium magnet transducers housed in an elegant and resistant aluminum chassis.
The Vyper-KV25 features two different values of impedance (8O – 32O), with the benefit of joining up to 8 units powered from a single amplifier channel at the 32O, being the perfect solution for small to medium venues. The Vyper is able to reproduce the whole vocal frequency range with high intelligibility and unparalleled directivity.
General
- Type Line array
- Transducers 4 x 1" neodymium magnet woofers
- Frequency Response (1) 150 Hz – 18 kHz (-6 dB)
- Maximum SPL (2) 108 dB (peak)
- Rated Power 75 W
- Coverage V. 25° | H. 140°
- Connectors 2PIN euroblock connector (included)
- Nominal Impedance 8 O / 32 O selectable
Handling and Finish
- Dimensions (W x H x D) 39.5 x 260 x 21.5 mm (1.6 x 10.2 x 0.9 in)
- Weight 0,4 kg (0.88 lb)
- Material Aluminum
- Color Black, White, Custom RAL
- Finishes 24K Gold, Polished, Brushed
Regulations
- IP Rating IP64
- Notes for data:
(1) With dedicated preset.
(2) Maximum SPL is calculated using crest factor 4 (12dB) measured at 8 m then scaled at 1 mPassive loudspeakers require dedicated presets loaded on K-array amplifiers.
New materials and designs are introduced into existing products without previous notice.
