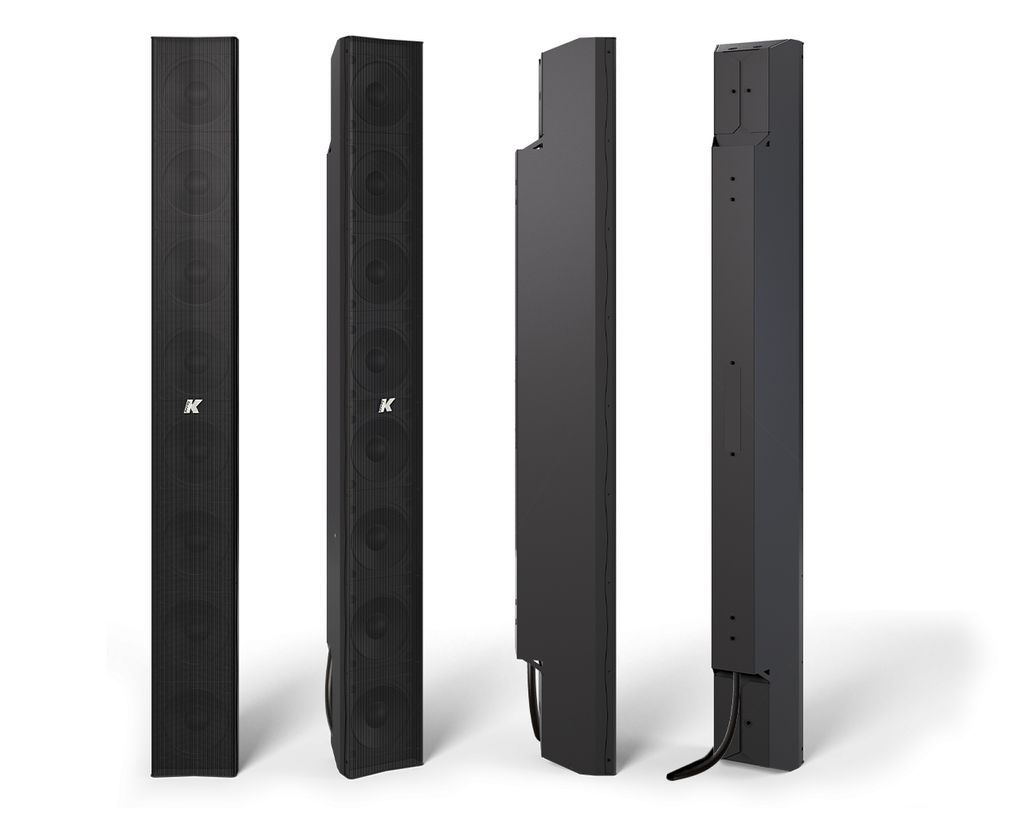

K-Array KY102-EBS Black

K-Array KY102-EBS Black

kr 0,00 kr 0,00 (MVA ekskl.)

  • Produsent
Legg i handlekurven
Kontakt oss

Varenummer: KY102-EBS

Kayman-KY102 in a NEW VERSION!
Steerable line array element thanks to EBS - Electronic Beam Steering

We designed KY102-EBS to expand the possibilities and provide an advanced solution to control emission and directivity in all those small and medium applications that require beam steering, with the uncompromising sound quality and features of our famous Kayman speakers! The evolution of our most powerful massive column array element. With a maximum output SPL of 138?dB and advanced Electronic Beam Steering through FIR processing on 8 independent amp channels, the KY102-EBS sets new standards in precision and power.

The main product models and codes are:
KY102-EBS black model
KY102W-EBS  white model
KY102X-EBS customizable color and premium finish (box + grill)

All Kayman-KY102-EBS components are designed by the K-array R&D department and are custom-made under the K-array quality control system in Italy.

Specifications

General

  • Type:

    Passive steerable line array element

  • Transducers:

    8 x 4" neodymium magnet woofers

  • Frequency Response:

    120 Hz – 20 kHz (-6 dB)

     (1)

  • Max SPL:

    138 dB (peak)

     (2)

  • Rated Power:

    8x 150W

  • Coverage:

    V. digitally adjustable | H. 90°

  • Connectors:

    16-wires multicore cable

  • Nominal Impedance:

    8x 4O

Handling and Finishes

  • Dimensions (W x H x D):

    116 x 1000 x 134 mm (4.6 x 39.4 x 5.3 in)

  • Weight:

    14.9 kg (32.8 lb)

  • Material:

    Stainless Steel

  • Colors:

    Black, White, Custom RAL

  • Finishes:

    24K Gold, Polished, Brushed

Regulations

  • IP Rating:

    IP64

     (3)
  • (1) With dedicated preset.
  • (2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m - and may vary depending on steering settings.
  • (3) More complete water protection with K-IP65KITA and K-IP65KITB accessories (IP65 compliant)

  • Passive loudspeakers requires dedicated preset loaded on board of K-array amplifiers.

    Passive loudspeaker that require dedicated K-array Kommander-KA amplifier with firmware-EBS (KA-EBS model on K-Monitor)

  • New materials and design are introduced into existing products without previous notice.

Spesifikasjoner

Produsent K-Array
