Varenummer:
KZ14

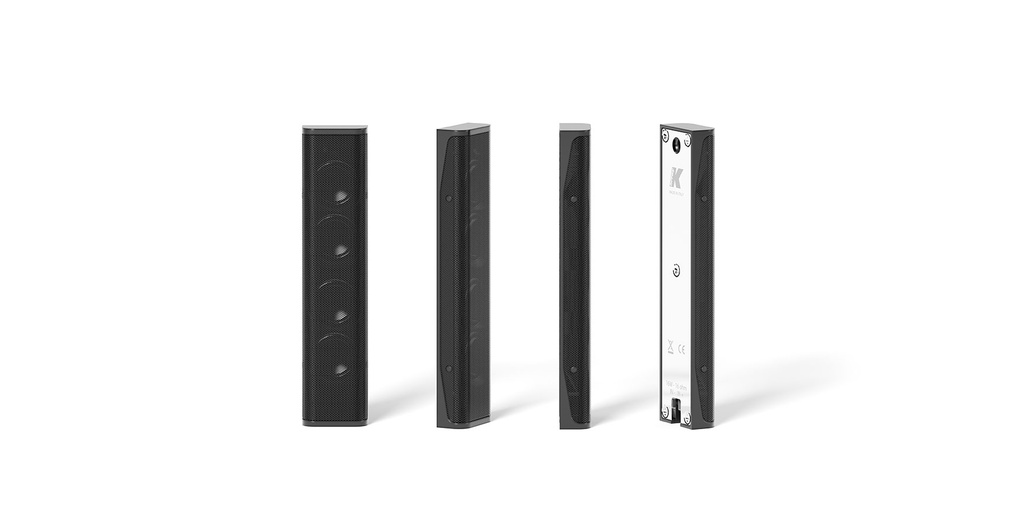

The Lyzard-KZ14 has resistant enclosure milled from a single bar of
aluminum containing four 0.5” long excursion, full-range drivers housed
in a sleek frame. The high efficiency drive units have neodymium magnet
structures and suspensions engineered for maximum linear excursion and
minimum residual transducer noise. This miniature, slim column is only
10 cm tall and 2.2 cm wide yet delivers clear audio with an amazing
output of 98 dB peak - remarkable from such a minuscule enclosure.
Specifications
General
- Type Line array
- Transducers 4 x 0.5" neodymium magnet woofers
- Frequency Response (1) 500 Hz – 18 kHz (-6 dB)
- Maximum SPL (2) 98 dB (peak)
- Rated Power 15 W
- Coverage V. 40° | H. 140°
- Connectors IN+ IN- screw terminals
- Nominal Impedance 16 O
Handling and Finishes
- Dimensions (W x H x D) 22 x 100 x 11 mm (0.9 x 3.9 x 0.4 in)
- Weight 0,059 kg (0.130 lb)
- Material Aluminum
- Color Black, White, Custom RAL
- Finishes 24K Gold, Polished
Regulations
- IP Rating IP64
- Notes for data:
(1) With dedicated preset.
(2) Maximum SPL is calculated using crest factor 4 (12dB) measured at 8 m then scaled at 1 mPassive loudspeakers require dedicated presets loaded on K-array amplifiers.
New materials and designs are introduced into existing products without previous notice.
