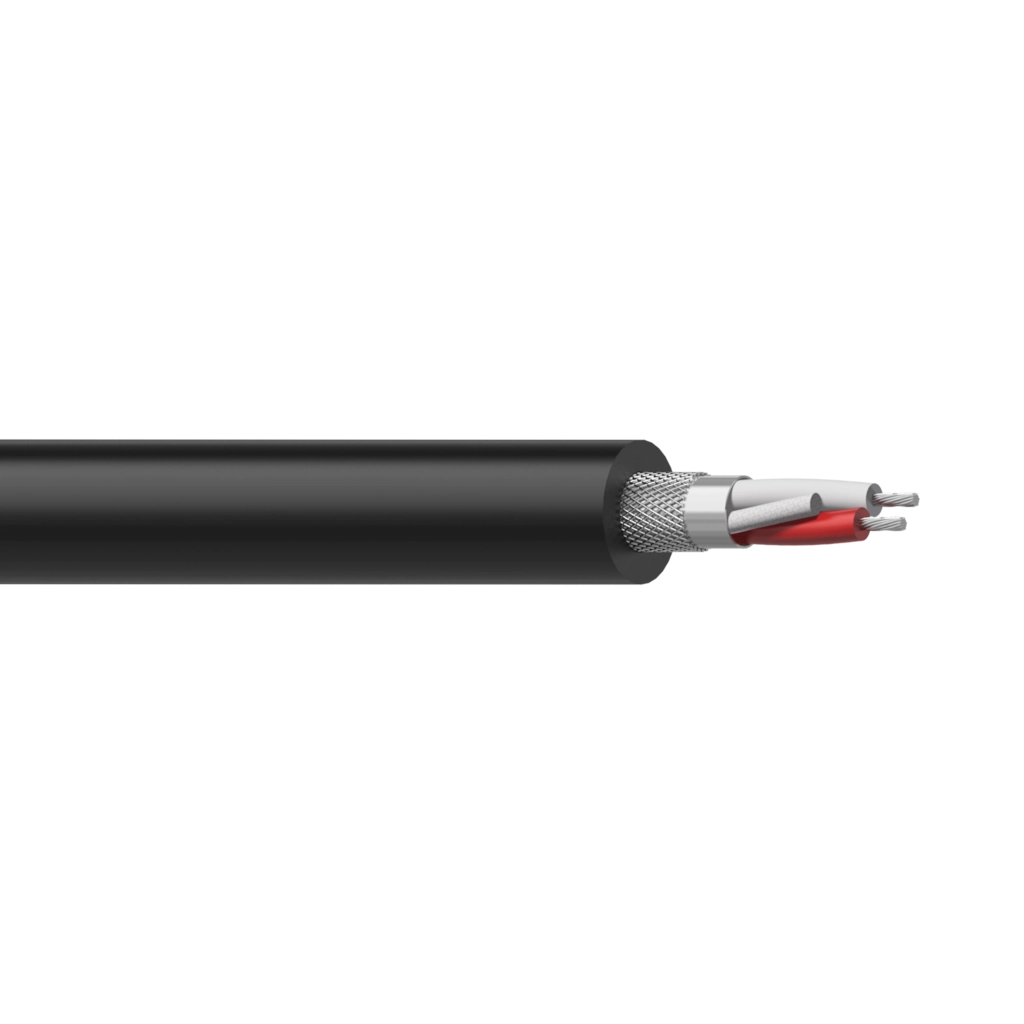

Procab MC405/5

General Specifications

• Type of cable : Balanced microphone cable
• Inner conductor : 2 x TC 20 x 0.12 mm
• Inner conductor section : 0.23 mm²
• Isolation : LDPE ø 1.4 mm
• Isolation colour : Red / White
• Number of conductors : 2
• Conductor twisting : Yes
• Shielding : TC 64 x 0.12 mm - Braiding & Aluminum foil
• Shielding % : 100%
• Filling : Cotton yarn
• Separator : None
• Outer jacket : Flexible PVC
• Outer jacket colour : Black
• Outer jacket dimensions : ø 6 mm
• Printing colour : White
• Printing text : Procab MC405
• Lead resistance - 100 meter : 3.7 Ohm
• Cable crosstalk - 100 meter : Min 76.2 dB
• Cap. Lead to lead - meter @ 1 kHz : 113 pF
• Cap. Lead to shielding - meter @ 1 kHz : 221 pF
• American Wire Gauge (AWG) : 24
