Varenummer:
OPR406

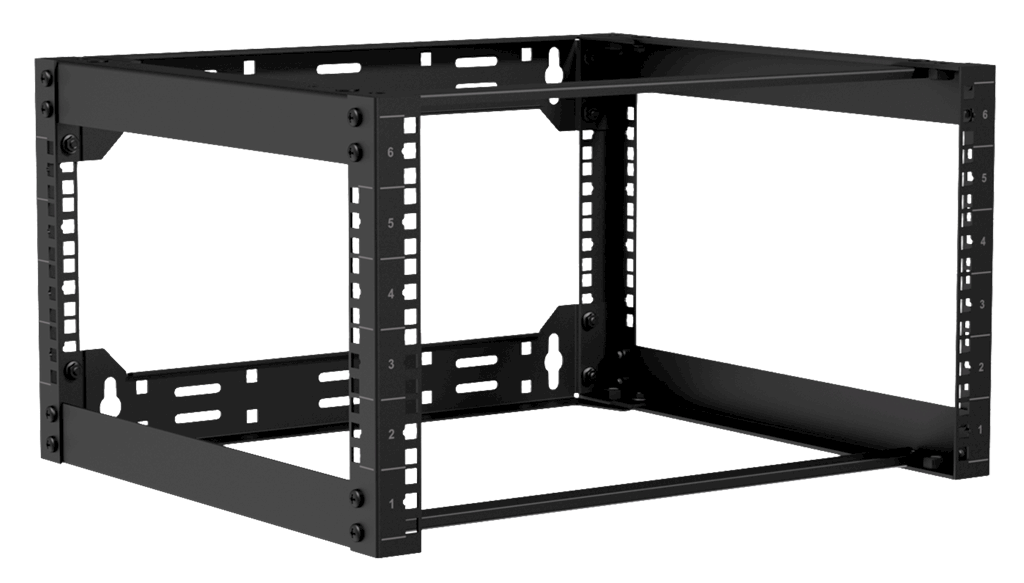

The OPR406 is a professional and solid constructed open-frame rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards which is suitable for wall mounted or floor standing installation. It ensures maximum installation, connectivity and maintenance ease storing up to 6 units of 19” equipment. The open-frame rack has a depth of only 450 mm for easy installation in existing furniture. The rugged construction made of 2.5 mm thick steel allows pre-loading of the equipment before transportation to the installation site. Finishing is done in a black (RAL9004) powder coating with fine structure while punched equipment mounting profiles on front and both sides offer a multifunctional use of the cabinet. Delivered in a flat-down package, the simple structure allows assembly by a single person in a record-breaking time.
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Unit height | 6 HE | |||
| Max. usable depth | 450 mm | |||
| Max. load standing | 160 kg | |||
| Max. load hanging | 80 kg | |||
| Dimensions | 518 x 290.7 x 450 mm (W x H x D) (excl. rubber feet) | |||
| Weight | 6.65 kg | |||
| Colours | Black (RAL9004) | |||
Spesifikasjoner
| Produsent | Caymon |
