Varenummer:
PMI224/3
PMI224
Balanced microphone cable - 2 x 0.22 mm² - 24 AWG - HighFlex™
Rental & MI
- 24 AWG thin and dense stranded conductors
- Highflex™ solid & flexible jacket
- 6.2 mm (Ø) outer diameter
- Made in EU

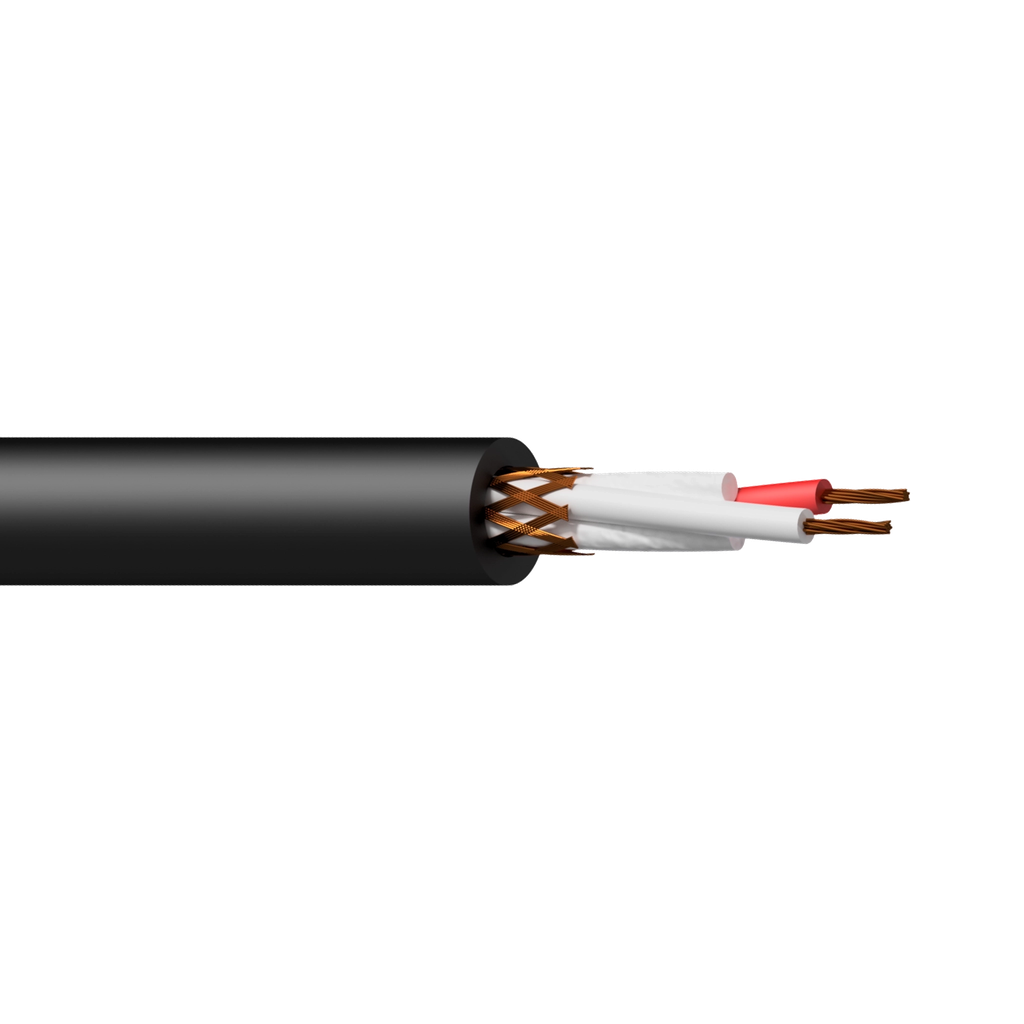

The PMI224 is a high-quality microphone cable with a highly flexible outer jacket. This cable is made rigid, which allows you to roll it up, even at longer lengths effortlessly. Two 24 AWG (0.22 mm²) conductors consisting of 12 copper strands with 0.15 mm thickness are surrounded by an 80-strand braided copper shielding with superior coverage. Combined with the thick and soft PVC outer jacket, this provides a flexible but solid feel while allowing it to withstand an extreme amount of bending cycles. Optimal signal transmission is guaranteed due to the low capacitance and use of high-purity copper, while the high-coverage shielding provides excellent immunity against interference. These features make the PMI224 perfect for use in professional stage & studio applications.
| Product Features | |
|---|---|
| Application | Rental & MI |
| Series | Bulk & Accessories |
| Physical Characteristics | |||
|---|---|---|---|
| Inner conductor | Insulation | Material | PE 1.5 mm (Ø) |
| Colours | White / Red | ||
| Shielding | Braiding | BC 16 x 5 x 0.10 mm (Ø) (OFC) | |
| Outer jacket | Material | Highflex PVC 6.2 mm (Ø) | |
| Colours | Black | ||
| Type of cable | 24 AWG Microphone cable | ||
| Inner conductor | Material | BC 12 x 0.15 mm (Ø) (OFC) | |
| Section | 0.22 mm² | ||
| Filling | Cotton Yarn | ||
| Inner conductor | Number of conductors | 2 | |
| Conductor twisting | Yes |
| Mechanical Characteristics | ||
|---|---|---|
| Temperature range | Fixed installation | - 20 °C till + 70 °C |
| Mobile installation | - 5 °C till + 70 °C | |
| Bending radius | Fixed installation | 5 x outer diameter |
| Mobile installation | 10 x outer diameter |
Spesifikasjoner
| Produsent | Procab |
