Varenummer:

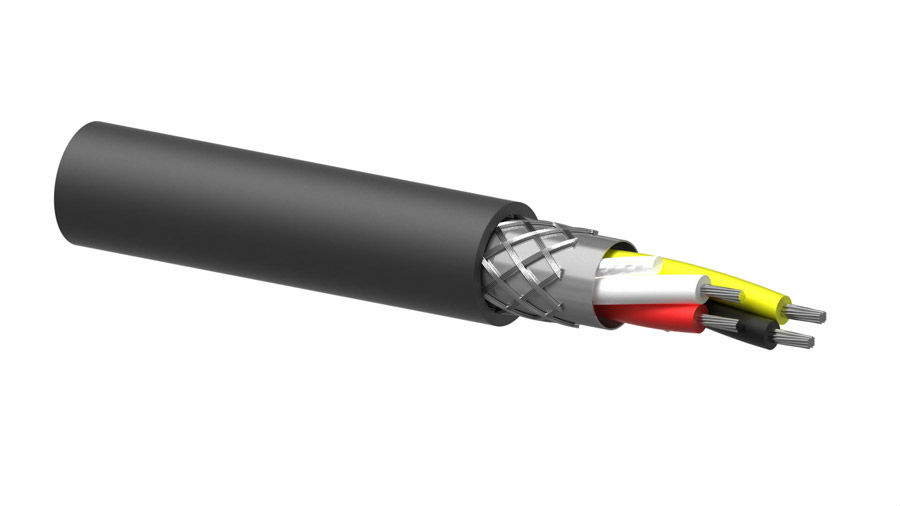

PMX422/3
General Specifications
- Type of cable : DMX - 512
- Inner conductor : Tinned Copper 17 x 0.16 mm
- Inner conductor section : 0.342 mm²
- Insulation color : Red / White / Yellow / Black
- Number of conductors : 4
- Overall shield : Aluminum Foil + Tinned Copper Braiding 16 x 8 x 0.1
- Filling : Cotton
- Separator : None
- Outer jacket : Flexible PVC
- Outer jacket color : Dark Grey
- Outer jacket dimensions : ø 6.8 mm ± 0.1 mm
- American Wire Gauge : 22 AWG
- Lead resistance : Less than 52 Ohms / kilometre
- Capacitance Conductor / Shield : 79 pF / metre
- Capacitance Conductor / Conductor : 50 pF / metre
Highly Flexible outer jacket
22 AWG Tinned copper conductors
Double shielding (Al-foil + Braiding)
Smooth & durable outer jacket
Ideal for installation, stage & mobile use
22 AWG Tinned copper conductors
Double shielding (Al-foil + Braiding)
Smooth & durable outer jacket
Ideal for installation, stage & mobile use
Type of cable
DMX - 512
Inner conductor
Tinned Copper 17 x 0.16 mm
Inner conductor section
0.342 mm²
Insulation color
Red / White / Yellow / Black
Number of conductors
4
Overall shield
Aluminum Foil + Tinned Copper Braiding 16 x 8 x 0.1
Filling
Cotton
Separator
None
Outer jacket
Flexible PVC
Outer jacket color
Dark Grey
Outer jacket dimensions
Ø 6.8 mm ± 0.1mm
American Wire Gauge
22 AWG
Lead resistance
Less than 52 Ohms / kilometre
Capacitance Conductor / Shield
79 pF / metre
Capacitance Conductor / Conductor
50 pF / metre
Spesifikasjoner
| Produsent | Procab |
