Varenummer:
PRX102/50

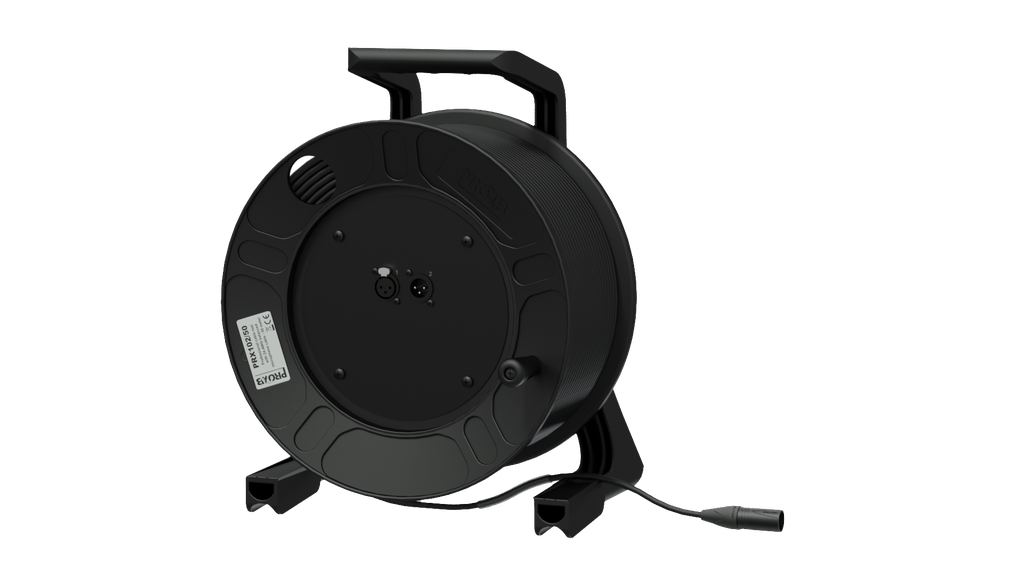

The PRX102 is a HighFlex balanced microphone cable (RMC306) assembled on a lightweight, extremely strong and impact resistant plastic reel (CDM310).
_x000D_The conductor section is constructed using two 24 AWG stranded conductors which are surrounded by a braided shielding, offering a high immunity against noise and interference caused by external devices. The cable is jacketed using highly flexible and durable PVC materials, which guarantee a high flexibility and reliability for mobile applications.
The cable end is terminated using a male Neutrik XLR connector while the chassis side is fitted with both a male and female Neutrik XLR connector allowing linkthrough.
General Specifications
_x000D_- _x000D_
- Type of cable : Balanced microphone cable _x000D_
- Inner conductor : BC 20 x 0.12 mm (OFC) _x000D_
- Inner conductor section : 0.22 mm² _x000D_
- Number of conductors : 2 _x000D_
- Insulation : PE Ø 1.6 mm _x000D_
- Insulation Colour : Red / White _x000D_
- Filler : Cotton yarn _x000D_
- Separator : Cotton paper _x000D_
- Shielding : Braiding BC 16 x 4 x 0.12 mm > 63% coverage _x000D_
- Outer jacket : Highflex PVC _x000D_
- Outer jacket colour : Black _x000D_
- Outer jacket dimensions : Ø 6.0 mm _x000D_
- American Wire Gauge : 24 AWG _x000D_
- Connection Type : XLR male (cable) to XLR female & male (chassis) _x000D_
- Fitted Connectors : NC3MXX-BAG, NC3FDLX, NC3MDLX _x000D_
- Dimensions (W x H x D) : 312 x 392 x 234 mm
Spesifikasjoner
| Produsent | Procab |
