Varenummer:
PRX222/50
Each channel is constructed using two 24 AWG stranded wires which are surrounded by a dual shielding consisting of a spiral and aluminum foil, offering high immunity against noise and interference caused by external devices, while high flexibility and reliability for mobile applications.

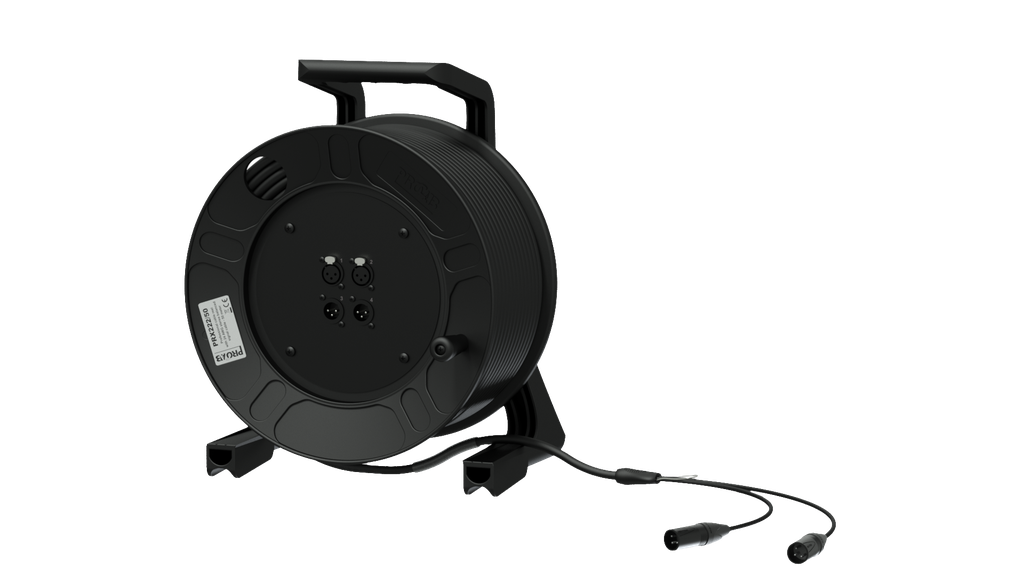

Both channel cable ends are separated over a length of 500 mm and come together in a break-out molding with steel hook-up wire. The cable ends are terminated using a male Neutrik XLR connectors while the chassis side is fitted with both a male and female Neutrik XLR connector for each channel.
Highlights
Silver contacts, black metal XLR housing
| PHYSICAL CHARACTERISTICS | ||||
|---|---|---|---|---|
| Type of cable | 24 AWG Stereo signal cable | |||
| Inner conductor | Material | BC 20 x 0.12 mm (Ø) (OFC) | ||
| Section | 0.22 mm² | |||
| Number of conductors | 4 (2 pairs) | |||
| Insulation | Material | PE 1.4 mm (Ø) | ||
| Colours | White / Red | |||
| Shielding | Spiral | BC 32 x 0.12 mm (Ø) (OFC) | ||
| Aluminium foil | Al-mylar, 100% coverage - 25% Overlap | |||
| Filling | Cotton Yarn | |||
| Separator | Cotton paper | |||
| Outer jacket | Material | Highflex PVC 8.8 mm (Ø) | ||
| Colours | Black | |||
| Connection type | XLR male (cable) to XLR female & male (chassis) - 2x | |||
| Fitted connectors | NC3 mXX-BAG, NC3FDLX, NC3 mDLX | |||
| ELECTRICAL CHARACTERISTICS | ||||
|---|---|---|---|---|
| Dielectric strength | 2 (KV / 1 min. DC) | |||
| Rated voltage | 300 V | |||
| Max. conductor | DC resistance | 87 (O / Km) | ||
| Shielding effectiveness | > 60 dB | |||
| PRODUCT FEATURES | ||||
|---|---|---|---|---|
| Dimensions | 312 x 392 x 234 mm (W x H x D) | |||
Spesifikasjoner
| Produsent | Procab |
