Varenummer:

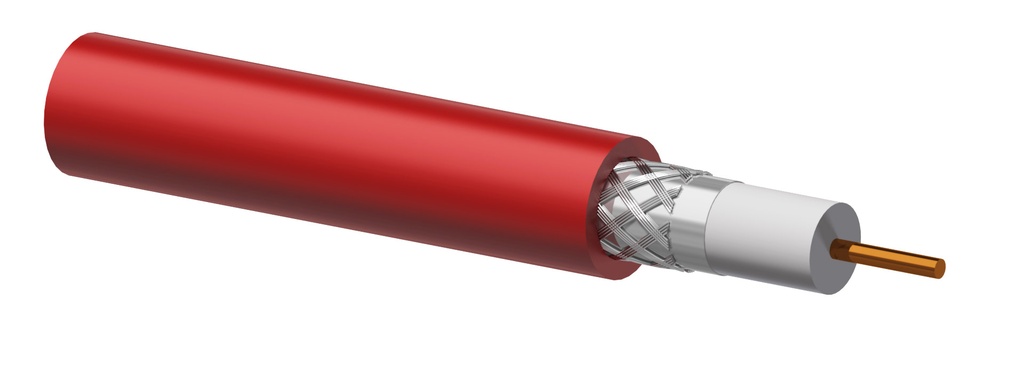

RG06HF/1
General Specifications
- Type of cable : LSHF Coaxial video cable - 75 Ohm - ø 7 mm
- Inner conductor : BC 1 x 0.1 mm
- Inner conductor section : 0.78 mm²
- Isolation : Foamed PE ø 4.5 mm
- Isolation colour : White
- Number of conductors : 1
- Shielding : BC 16 x 4 x 0.16 mm - Braiding
- : Aluminum foil
- Shielding % : 100%
- Outer jacket : Polyolefin
- Outer jacket colour : Dark red
- Outer jacket dimensions : ø 7 mm
- Impedance : 75 Ohm
- Printing colour : Grey
- Printing text : Procab RG06HF
- American Wire Gauge (AWG) : 26
Spesifikasjoner
| Produsent | Procab |
