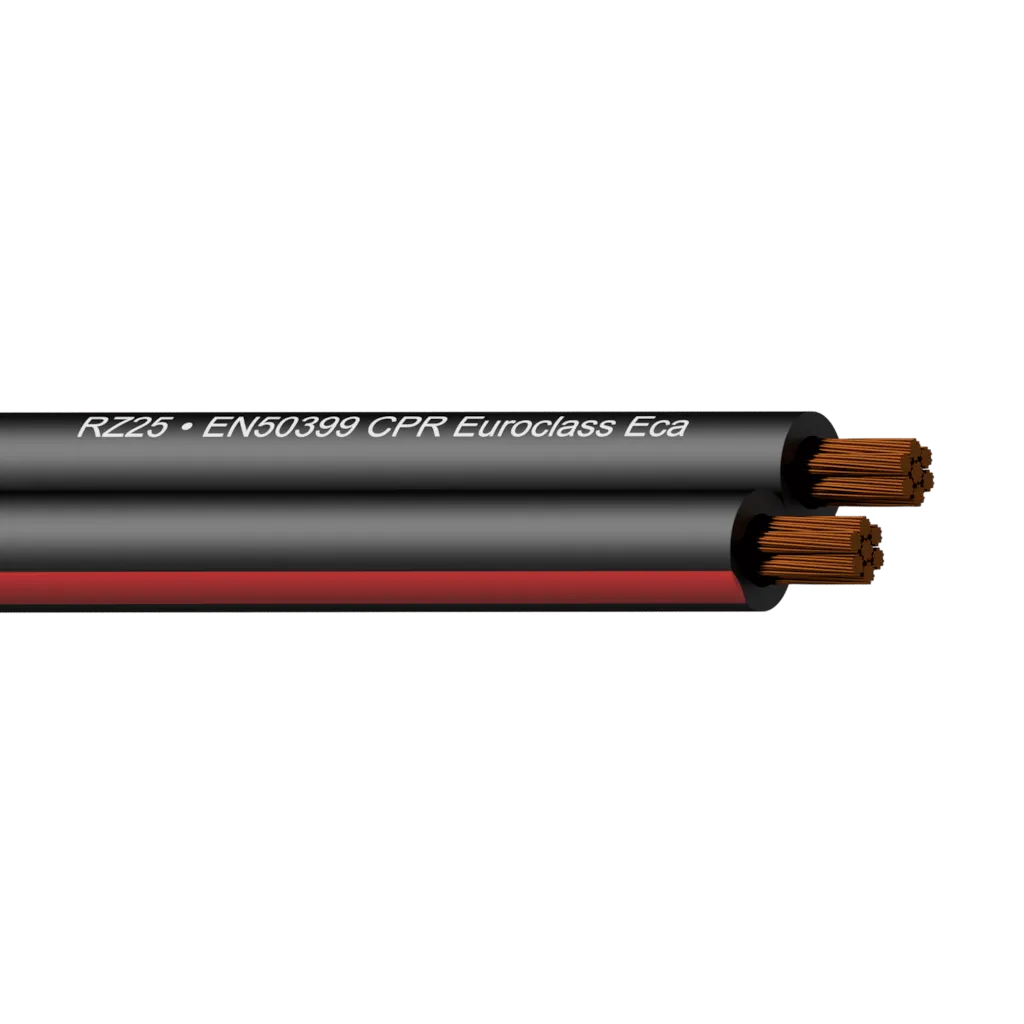

Procab RZ25-ECA/1

RZ serien er paralellkabel for høyttalere. Kablene er designet for høy fleksibilitet og høy slitestyrke. De er for det meste benyttet til innendørs montering.

General Specifications

_x000D_
• Type of cable : Speaker cable
_x000D_
• Inner conductor : BC 30 x 7 x 0.12 mm
_x000D_
• Inner conductor section : 2.5 mm²
_x000D_
• Number of conductors : 2
_x000D_
• Conductor twisting : No
_x000D_
• Outer jacket : Flexible PVC
_x000D_
• Outer jacket colour : Black with red molded line
_x000D_
• Outer jacket dimensions : 4 x 8 mm
_x000D_
• Printing colour : White
_x000D_
• Printing text : Procab RZ25
_x000D_
• Lead resistance - 100 meter : 0.9 Ohm
_x000D_
• Cable crosstalk - 100 meter : Min 74 dB
_x000D_
• Cap. Lead to lead - meter @ 1 kHz : 118 pF
_x000D_
• American Wire Gauge (AWG) : 13
