Varenummer:

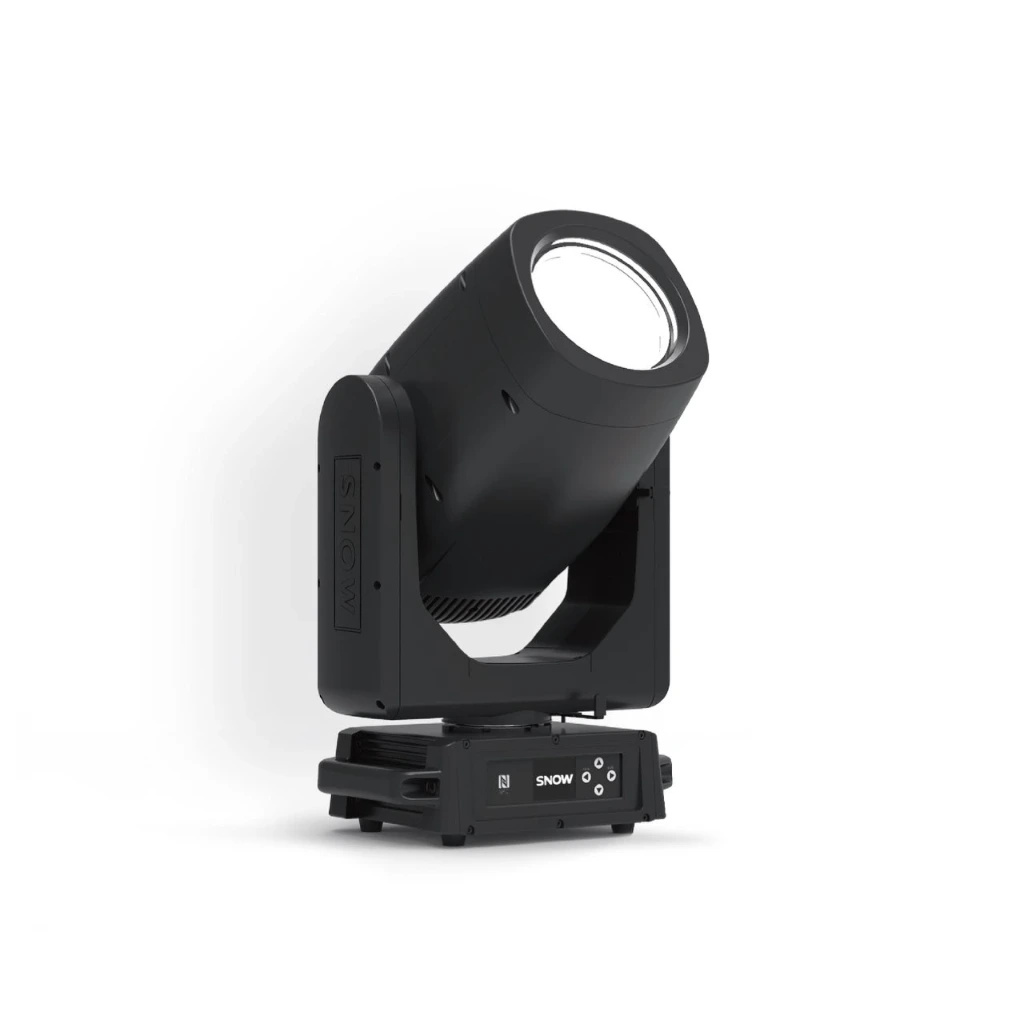

SnowSTORM 550X Profile
Optical system
| illuminant | 450W LED |
| Angle | 3°-52° |
| Luminous flux | 13100lm |
| illuminance | 5m@120,000lux(3°) |
| CRI | RA:70 |
Appearance
| Size | 362×234×624mm |
| Casing | Die casting magnesium aluminum |
| Weight | 27.2kg |
| Color | black |
Electrical Specs
| Volage | 100-240VAC,50/60HZ |
| Max.Power | 550W |
| Pawer Connection | Power input and output |
| Signal socket | 3pin and 5pin in and out |
Control System
| Mechanical Movement | Horizontal infinite rotation, vertical 270° (8‑16Bit scanning) |
| Dimming | Theatrical-grade dimming effect (0‑100% 24Bit dimming) |
| Control Protocol | DMX/RDM//NFC/CRMX (optional) |
| Cooling System | Air cooling |
| Function Effects | Display panel controls static, custom mode, 0‑25Hz strobe |
| Channel Modes | BASIC(34CH)/STANDARD(41CH)/EXTEND(56CH) |
Effect synthetic system
| CMYK | CMY+CTO |
| Color Wheel | 6 + 1 color filters |
| Rotating Gobo Wheel | 7 rotating gobos + white light, gobo scrolling effect, forward/reverse rotation |
| Effects Wheel | 1 rotating effects disc, water ripple and flame effects |
| Iris | 5‑100% linear adjustable iris, with macro function |
| Diffusion | 1 light diffusion, 1 heavy diffusion |
| Prism | 1 eight‑faceted prism, forward/reverse rotation, adjustable speed |
| Matrix Lens | 1 six‑segment matrix lens |
| Shutter | 4 shutter blades, smooth cutting, each blade can be controlled independently for direction and angle; single blade can fully close, entire shutter module can rotate ±90° |
Work Environment
| Operating Temperature | -20°C-45°C |
| Waterproof Rating | IP66 |
| Certification | CE Certified |
Spesifikasjoner
| Produsent | Snow |
