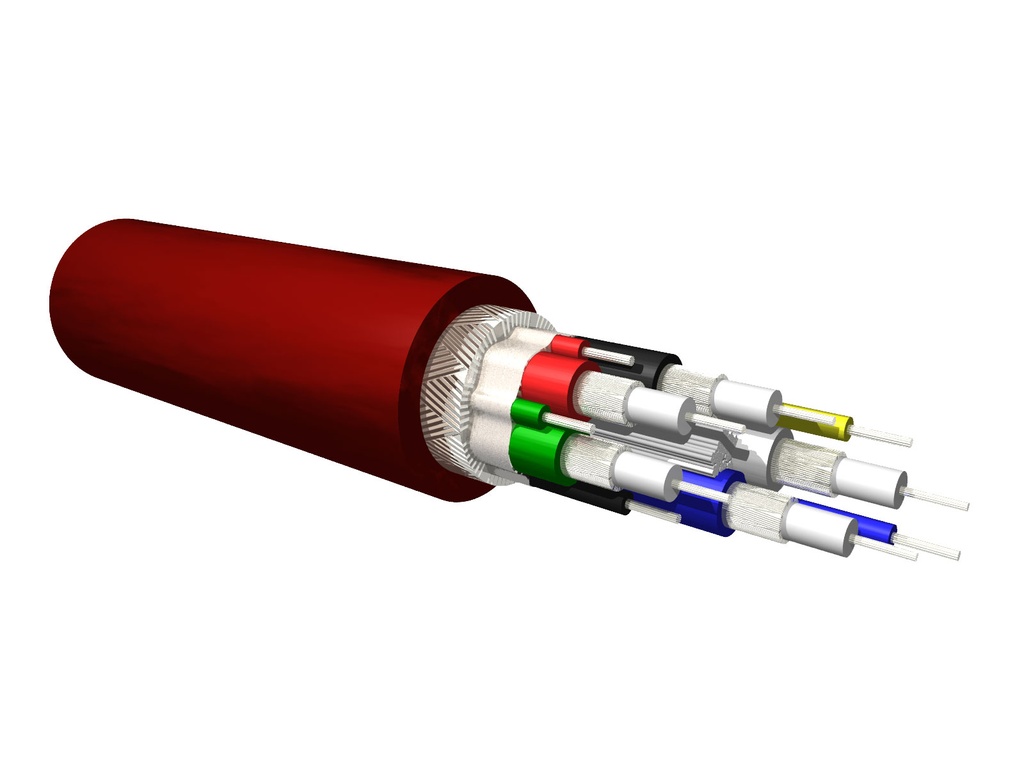

Procab SVGA60HF/1

General Specifications

• General Specs :
• Type of cable : LSHF SVGA video cable
• Shielding : TC 16 x 7 x 0.12 mm - Braiding
• : Aluminum foil
• : TC 1 x 0.5 mm - Drain wire
• Filling : Cotton yarn
• Outer jacket : Polyolefin
• Outer jacket colour : Dark red
• Outer jacket dimensions : ø 12 mm
• Printing colour : Grey
• Printing text : Procab SVGA60HF
• Video Section :
• Inner conductor : SPC 7 x 0.16 mm
• Inner conductor section : 0.14 mm²
• Isolation : Foamed PE ø 2.2 mm
• Isolation colour : White
• Number of conductors : 5
• Shielding : TC 40 x 0.12 mm - Spiral
• Shielding % : 100%
• Inner jacket : Flexible PVC
• Inner jacket colour : Black / Green / Blue / Red / White
• Inner jacket dimensions : ø 3.2 mm
• Impedance : 75 Ohm
• Data Section :
• Inner conductor : BC 10 x 0.12 mm
• Inner conductor section : 0.11 mm²
• Isolation : PVC ø 1.1 mm
• Isolation colour : Brown / Pink / Yellow / Black / White
• Number of conductors : 5
• Video AWG size : 26
• Data AWG size : 26
