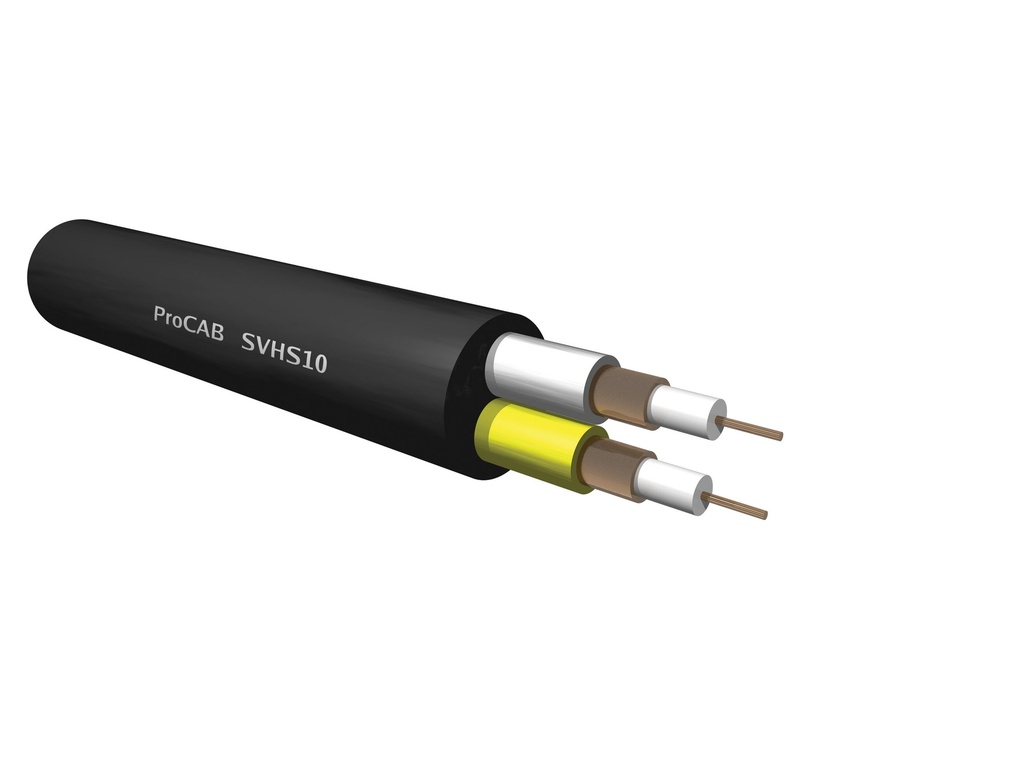

Procab SVHS10

General Specifications

• Type of cable : Super VHS Video cable
• Inner conductor : TC 7 x 0.16 mm
• Inner conductor section : 0.14 mm²
• Isolation : Foamed PE ø 1.4 mm
• Isolation colour : White
• Number of conductors : 2
• Shielding : TC 16 x 4 x 0.12 mm - Braiding
• Shielding % : 100%
• Inner jacket : Flexible PVC
• Inner jacket colour : White / Yellow
• Inner jacket dimensions : ø 2.7 mm
• Outer jacket : Flexible PVC
• Outer jacket colour : Black
• Outer jacket dimensions : ø 7 mm
• Impedance : 75 Ohm
• Printing colour : White
• Printing text : Procab SVHS10
• Lead resistance - 100 meter : 22 Ohm
• Shield resistance - 100 meter : 4.4 Ohm
• Lead capacitance @ 1 kHz - meter : 58 pF
• Lead attenuation @ 10 MHz - meter : 0.085 dB
• Voltage resistance : 300 VAC - 15 sec
• Insulation resistance : 10 MOhm / m @ 250V DC - 1 min
• Rated voltage : 30 V
• American Wire Gauge (AWG) : 26
