Photometrics
?Light Source:
960 pcs LEDs(480X1.5W RGB + 480X0.5W White)
?Beam Angle: 60°
?Field Angle:
125°
Key Features
?Pixel Matrix: 4
x 15
?Strobe: 0 ~
30Hz
?Dimming: 4
dimming curve modes
Control
?Protocol: DMX,
ArtNet,KlingNet,RDM
?DMX Channels:
12/28/44/244
?Built-in
Programs: Yes
Power
?Mains: 100 -
240 VAC, 50/60 Hz
?Consumption:
1000W (full-on constant output)
?Consumption:
1200W (peak instant strobe)

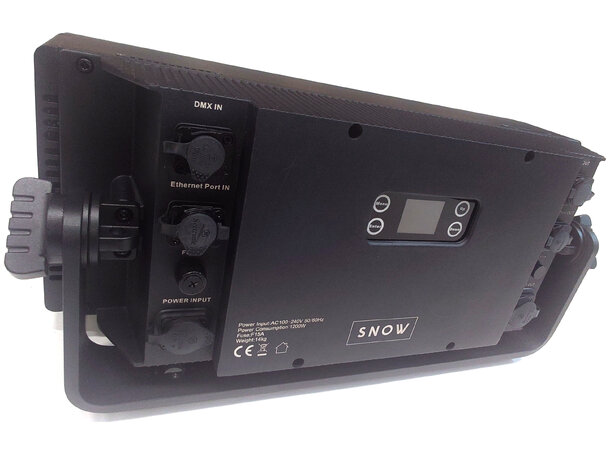

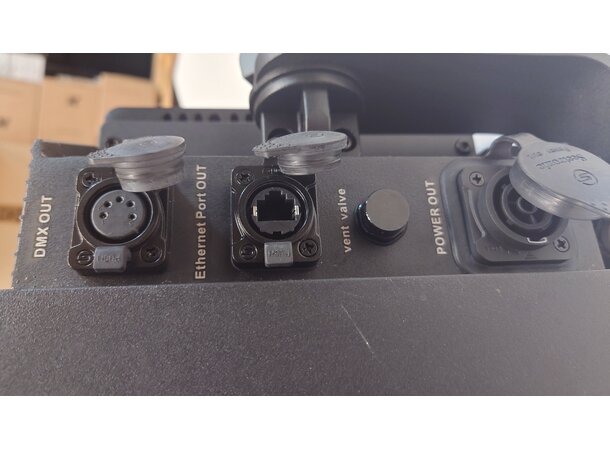

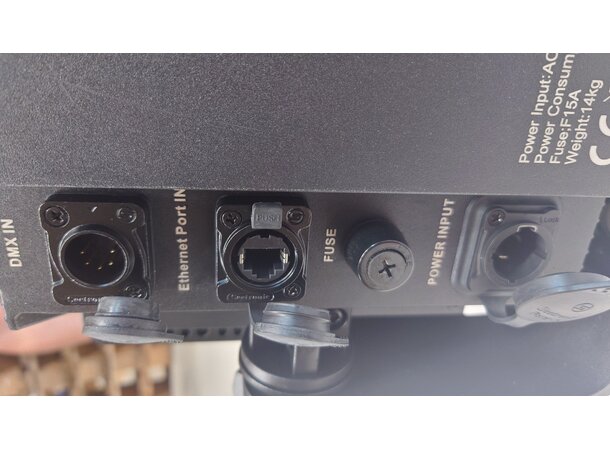

I/O
?Power
connections: IP65 PowerKon In/Out
?Data
connections: IP65 XLR In/Out for DMX,
?IP65 EtherCon
for ArtNet
Housing
?Material
Diecast Aluminum
?IP rating: IP65
Thermal
?Cooling
Variable speed fans
?Ambient
operating temps: -20° ~ 40°C
Physical
?Dimensions: 510
x 250 x 268 mm
?Weight: 12 KG
