| System specifications |
|
|
|
| Inputs |
Connector |
Euro
Terminal Block |
|
| Product Features |
|
|
|
| Dimensions |
|
|
80
x 80 mm (W x H) (Remote wall panel) |

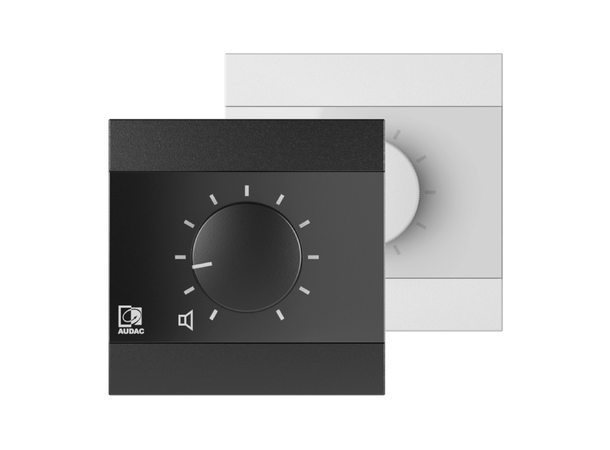

| Colours |
|
|

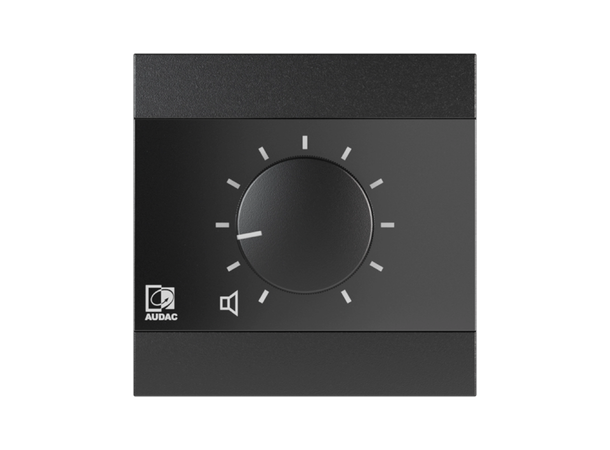

Black (RAL9005) (WP200/B) |
|
|
|

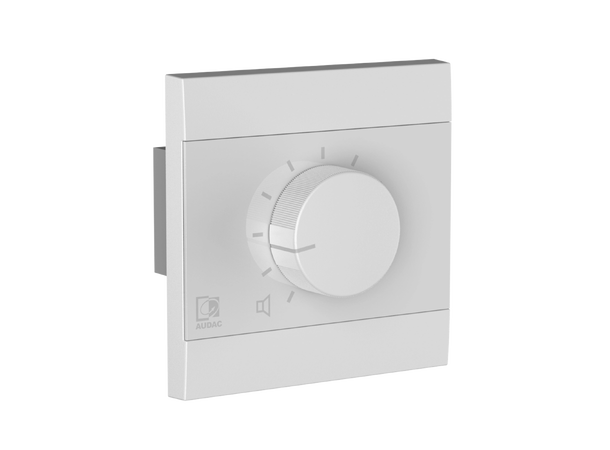

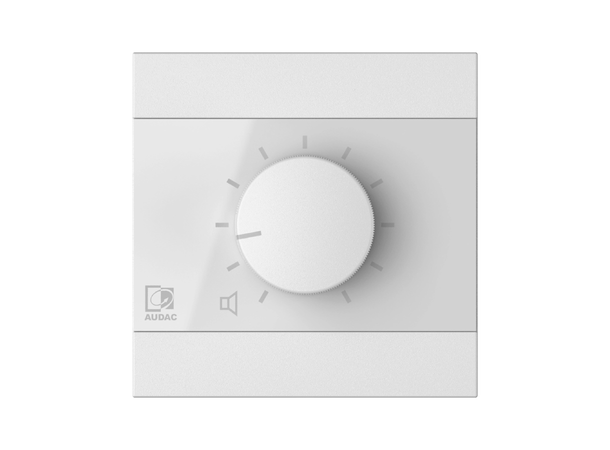

White
(RAL9003) (WP200/W) |
| Front finish |
|
|
Elegant ABS front panel with
glass |
| Accessories |
Optional |
Surface
mount Installation boxes |
WB200
- Surface mount wall box for WP & DWP series |
|
|
Flush mount Installation boxes |
Flush mount box for 45 x 45 mm
wall panel - Solid wall - WB45SI/FS |
|
|
|
Flush
mount box for 45 x 45 mm wall panel - Hollow wall - WB45S/FG |
| Standards and regulations |
|
|
| CE |
LVD |
Compliant
to EN 62368 |
|
|
EMC |
Compliant to EN 55032, EN55024,
EN 61000-3-2/3 |
|
| CB |
|
Compliant
to IEC 62368 |
|
| FCC |
|
Part 15C |
|
| cTUVus |
|
Compliant
to IEC 62368+UL62368 |
|
| RoHS |
|
Compliant |
|
| Reach compliant |
|
Compliant |
|
