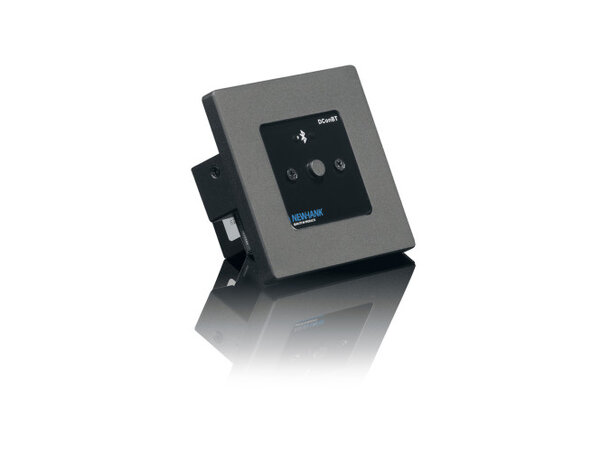

Newhank DConBT Dante, PoE, BT in/ut 2x2 PoE

Newhank DConBT Dante, PoE, BT in/ut 2x2

PoE

Varenr: 114836
8 996,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk infoDokumenter
Beskrivelse

The DCon series features three advanced products, all designed to fit standard European
in-wall junction boxes with a depth of 50mm and compatible with widely used EU cover
frames, making them perfect for seamless integration into commercial, educational,
and entertainment AV environments.

This 2×2 Bluetooth converter brings wireless audio flexibility to any Dante installation.
DConBT offers a host of control features, including call pickup, reject, music player control,
and customizable pairing button behavior. Additionally, users can define the Bluetooth radio
name to personalize their wireless audio experience. Like its counterparts, DConBT is
API-enabled for easy integration with third-party applications.



Teknisk info
System specifications
Inputs 2 x XLR female (in)
3.5 mm Jack (Stereo)
Control 2 buttons - Mic / Line switching
Indicators 2 LED’s (RGB) - Input status
Configurable settings IP settings
Device name
Input range (Mic / Line)
Gain
Phantom power
DSP (EQ)
Mixing
Configuration Audac Touch™
Integrated DSP Yes (EQ)
Automatic level control Yes
Phantom power +48 V DC
Power Supply PoE powered (IEEE 802.3at)
Connectors 3.5 mm Jack stereo (audio in)
RJ45 (network + PoE)
1 x XLR female (audio in)
Product Features
Construction ABS
Front finish Elegant front panel with glass
Colours White (RAL9003) (DWP215/W)
Black (RAL9005) (DWP215/B)
Compatible devices Any Dante™/AES67 compatible audio device
Dimensions 80 x 80 mm (W x H) (Remote wall panel)
Installation standard Compatible with EU installation materials
